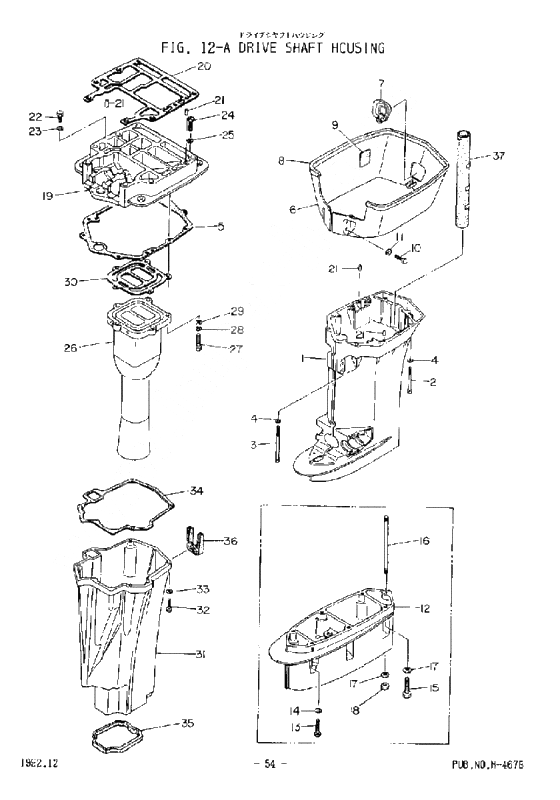

Drive shaft housing для Tohatsu M140A - 2002 года выпуска
-
№АртикулНазвание
-
00940-13080-0 Washer
NS120A,140AWasher
NS120A,140A -
003B7-61180-0 Exhaust Housing
NS120A,140AExhaust Housing
NS120A,140A -
003E0-61213-0 Seal Rubber Splash Pan
NS120A,140ASeal Rubber Splash Pan
NS120A,140A -
00910-13063-5 Bolt
NS120A,140ABolt
NS120A,140A -
003C7S61030-0 Drive shaft housing l
NS120A,140ADrive shaft housing l
NS120A,140A -
003B7-60001-0 Bolt, 10-40
NS120A,140ABolt, 10-40
NS120A,140A -
00910114-0830 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-61216-0 Set rubber,splash pan
NS120A,140ASet rubber,splash pan
NS120A,140A -
003C7-01312-0 Bolt, 8-50
NS120A,140ABolt, 8-50
NS120A,140A -
003C7-61017-0 Bolt, 10-107
NS120A,140ABolt, 10-107
NS120A,140A -
003B7-61112-0 Stud Bolt
NS120A,140AStud Bolt
NS120A,140A -
003B7-61181-0 New part
NS120A,140ANew part
NS120A,140A -
00910121-0612 Bolt
NS120A,140ABolt
NS120A,140A -
00940203-0800 Washer
NS120A,140AWasher
NS120A,140A -
003C7-61018-0 Bolt, 10-120
NS120A,140ABolt, 10-120
NS120A,140A -
003B7-61114-0 Nut
NS120A,140ANut
NS120A,140A -
003B7-61182-0 Grommet, exhaust housing
NS120A,140AGrommet, exhaust housing
NS120A,140A -
00940-13060-0 Washer
NS120A,140AWasher
NS120A,140A -
003C7-02311-0 Exhaust Pipe
NS120A,140AExhaust Pipe
NS120A,140A -
003C7-61012-0 Gasket drive shaft housing
NS120A,140AGasket drive shaft housing
NS120A,140A -
003C7S01301-0 Engine base
NS120A,140AEngine base
NS120A,140A -
003B7-61207-0 Grommet, Idle Port
NS120A,140AGrommet, Idle Port
NS120A,140A -
003B7S61110-0 Extension housing ul
NS120A,140AExtension housing ul
NS120A,140A -
00941303-0800 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
003C7S61210-1 Splash pan
NS120A,140ASplash pan
NS120A,140A -
003C7-01303-0 Gasket, engine base
NS120A,140AGasket, engine base
NS120A,140A -
003B7-61186-0 Reverse Gas Passage
NS120A,140AReverse Gas Passage
NS120A,140A -
00353-61113-0 Bolt, handle b
NS120A,140ABolt, handle b
NS120A,140A -
003C7-02312-0 Gasket, Exhaust Pipe
NS120A,140AGasket, Exhaust Pipe
NS120A,140A -
003C7-61212-0 Grommet,splash pan
NS120A,140AGrommet,splash pan
NS120A,140A -
00345-01111-0 Dowel Pin 6-12
NS120A,140ADowel Pin 6-12
NS120A,140A
