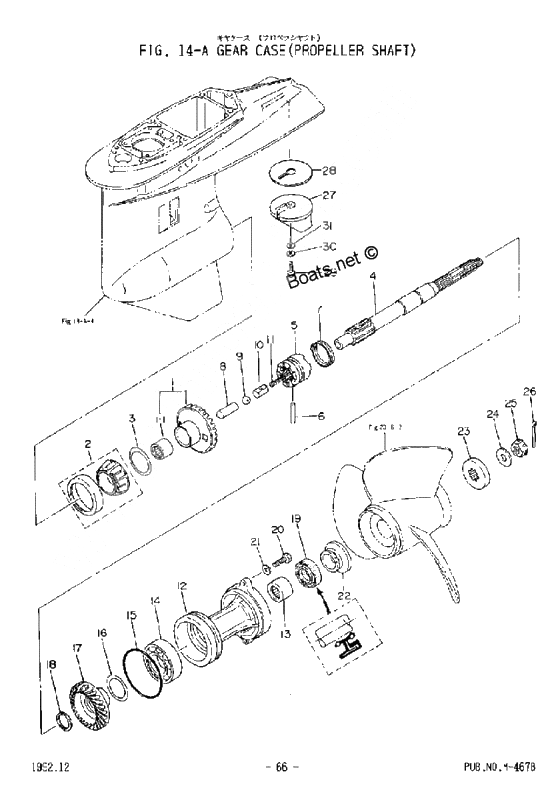

Gear case (propeller shaft) для Tohatsu M140A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-60211-0 Needle Bearing, 30-40-30
NS120A,140ANeedle Bearing, 30-40-30
NS120A,140A -
003B7-60217-0 Trim Tab
NS120A,140ATrim Tab
NS120A,140A -
003B7-64218-0 Clutch Pin
NS120A,140AClutch Pin
NS120A,140A -
00910114-0830 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-64010-0 Bevel Gear A Ass'y
NS120A,140ABevel Gear A Ass'y
NS120A,140A -
009601-0-6208 Ball bearing, 6208
NS120A,140ABall bearing, 6208
NS120A,140A -
003B7-60219-0 Packing, Trim Tab
NS120A,140APacking, Trim Tab
NS120A,140A -
003B7-64219-0 Snap, Clutch Pin
NS120A,140ASnap, Clutch Pin
NS120A,140A -
00940203-0800 Washer
NS120A,140AWasher
NS120A,140A -
003B7-60103-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
00941303-0800 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
009650-2-1609 Steel ball, 9/16
NS120A,140ASteel ball, 9/16
NS120A,140A -
003B7-64231-1 Thrust holder, propeller
NS120A,140AThrust holder, propeller
NS120A,140A -
003C7-60215-0 Bearing, 30209
NS120A,140ABearing, 30209
NS120A,140A -
003B7-64033-0 Shim
NS120A,140A-T=2.8,3.0,3.2Shim
NS120A,140A-T=2.8,3.0,3.2 -
00940-13080-0 Washer
NS120A,140AWasher
NS120A,140A -
003B7-64222-0 Spring Holder, Clutch
NS120A,140ASpring Holder, Clutch
NS120A,140A -
00345-64124-0 Washer
NS120A,140AWasher
NS120A,140A -
003B7-64012-0 Shim
NS120A,140A-T=0.1,0.15Shim
NS120A,140A-T=0.1,0.15 -
003C7-64093-0 Bevel Gear C
NS120A,140ABevel Gear C
NS120A,140A -
00346-64221-0 Spring Clutch
NS120A,140ASpring Clutch
NS120A,140A -
00353-64121-0 Nut Propeller
NS120A,140ANut Propeller
NS120A,140A -
003B7-64211-0 Propeller Shaft
NS120A,140APropeller Shaft
NS120A,140A -
003B7-64039-0 Washer set, t=2.8,3.0,3.2
NS120A,140A-T=2.8,3.0,3.2Washer set, t=2.8,3.0,3.2
NS120A,140A-T=2.8,3.0,3.2 -
003B7S60101-1 Housing propeller shaft
NS120A,140AHousing propeller shaft
NS120A,140A -
00951-53032-5 Split Pin
NS120A,140ASplit Pin
NS120A,140A -
003C7-64215-0 Clutch
NS120A,140AClutch
NS120A,140A -
003B7-60111-0 Oil seal, 30-50-12
NS120A,140AOil seal, 30-50-12
NS120A,140A -
013B7-64011-0 Needle Bearing, 25-32-26
NS120A,140ANeedle Bearing, 25-32-26
NS120A,140A
