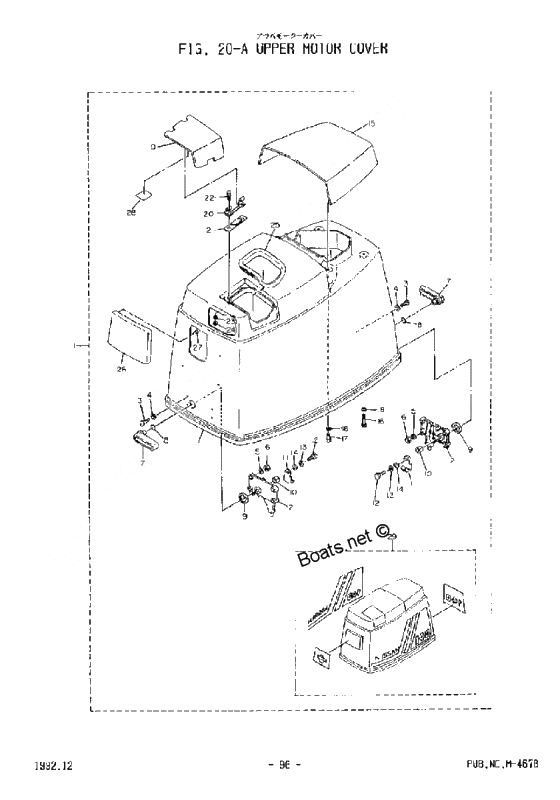

Upper motor cover для Tohatsu M140A - 2002 года выпуска
-
№АртикулНазвание
-
00NE1-67510-0 Upper motor cover ass'y
NS120A,140AUpper motor cover ass'y
NS120A,140A -
00ND9-67510-0 Upper motor cover ass'y
NS120A,140AUpper motor cover ass'y
NS120A,140A -
013C7-67501-0 Seal rubber upper motor cover
NS120A,140ASeal rubber upper motor cover
NS120A,140A -
03921703-5520 Stud Bolt
NS120A,140AStud Bolt
NS120A,140A -
04940-13050-0 Washer
NS120A,140AWasher
NS120A,140A -
05941303-0500 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
06930111-0500 Nut
NS120A,140ANut
NS120A,140A -
07353S67141-0 Hook lever
NS120A,140AHook lever
NS120A,140A -
08338-62435-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
09353-67147-1 Seal ring
NS120A,140ASeal ring
NS120A,140A -
10353-67105-0 Bushing
NS120A,140ABushing
NS120A,140A -
11353-67142-1 Cover Hook
NS120A,140ACover Hook
NS120A,140A -
12910103-0616 Bolt
NS120A,140ABolt
NS120A,140A -
13941303-0600 New part
NS120A,140ANew part
NS120A,140A -
14332-66308-0 Washer, fuel tank
NS120A,140AWasher, fuel tank
NS120A,140A -
193B7S67210-0 Filler lid
NS120A,140AFiller lid
NS120A,140A -
203B7-67211-0 Hinge, Filler Lid
NS120A,140AHinge, Filler Lid
NS120A,140A -
213B7-67212-0 Spring, filler lid
NS120A,140ASpring, filler lid
NS120A,140A -
22910103-0614 Bolt
NS120A,140ABolt
NS120A,140A -
24930103-0600 Nut
NS120A,140ANut
NS120A,140A -
253B7-67213-0 Seal rubber, filler lid
NS120A,140ASeal rubber, filler lid
NS120A,140A -
263C7-67533-0 Base front mark
NS120A,140ABase front mark
NS120A,140A -
273C7-67539-0 Screw 5-12
NS120A,140AScrew 5-12
NS120A,140A -
283C7-72041-0 Label, oil
NS120A,140ALabel, oil
NS120A,140A -
29ND9-87802-0 Decal set
NS120A,140ADecal set
NS120A,140A -
29NE1-87802-0 Decal set
NS120A,140ADecal set
NS120A,140A
