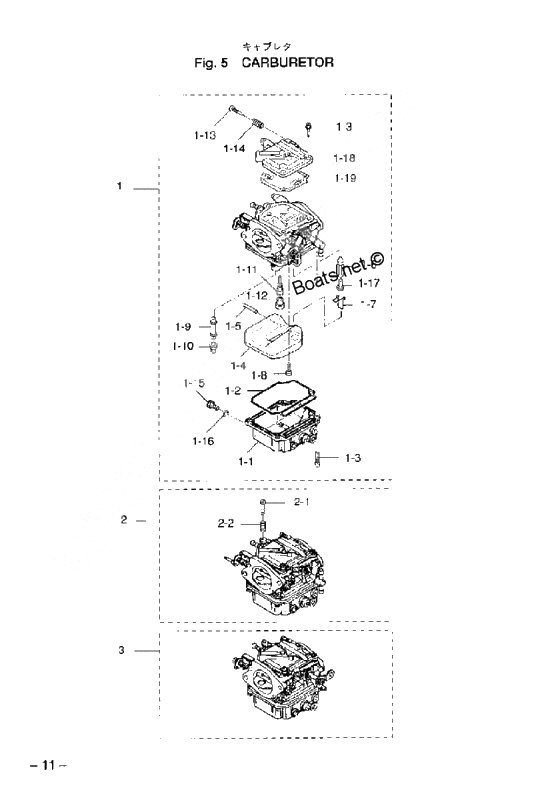

Carburetor для Tohatsu M70C - 2002 года выпуска

№

Артикул

Название
1

3F3-03200-1 Carburetor upper ass'y
70C-

Carburetor upper ass'y
70C-

17 360 ₽
1-1

3F3-03221-0 Float Chamber
, X3 UPPER, CENTER LOWER

Float Chamber
, X3 UPPER, CENTER LOWER

3 330 ₽
1-10

3K7-03251-0 Main jet #138
, X2, UPPER LOWER

Main jet #138
, X2, UPPER LOWER

800 ₽
1-10

3J5-03251-0 Main jet #140
X1 CENTER

Main jet #140
X1 CENTER

800 ₽
1-11

3J5-03255-0 Slow jet #72
X3

Slow jet #72
X3

1 170 ₽
1-12

346-03256-0 Rubber cap
, X3

Rubber cap
, X3

570 ₽
1-13

346-03266-0 Adjust Screw

Adjust Screw

1 560 ₽
1-14

345-03268-0 Spring B

Spring B

110 ₽
1-15

345-03292-0 Drain Screw
, X3

Drain Screw
, X3

460 ₽
1-16

336-03293-0 O-Ring
, X3

O-Ring
, X3

300 ₽
1-17

334-03242-0 Игольчатый клапан
, X3

Игольчатый клапан
, X3

150 ₽
1-18

3F3-03181-0 Carburetor cover
, X3

Carburetor cover
, X3

2 580 ₽
1-19

3F3-03182-0 Gaket,carburetor cover
, X3

Gaket,carburetor cover
, X3

900 ₽
1-2

3F3-03222-0 O-ring float chamber
, X3

O-ring float chamber
, X3

670 ₽
1-3

922503-6414 Stud Bolt
, X3

Stud Bolt
, X3

190 ₽
1-4

3F3-03231-0 Float
, X3

Float
, X3

2 420 ₽
1-5

3F3-03232-0 Arm Pin Float
, X3

Arm Pin Float
, X3

280 ₽
1-6

3B7-03240-0 Float Valve
, X3

Float Valve
, X3

880 ₽
1-7

344-03244-0 Clip
, X3

Clip
, X3

550 ₽
1-8

3F3-03234-0 Screw arm pin
, X3

Screw arm pin
, X3

140 ₽
1-9

3J5-03252-0 Main Nozzle
, X3

Main Nozzle
, X3

1 360 ₽
2

3F3-03207-1 Carburetor center ass'y
70C/60C-

Carburetor center ass'y
70C/60C-

17 360 ₽
2-1

346-03265-0 Stop Screw

Stop Screw

600 ₽
2-2

346-03267-0 Spring a

Spring a

250 ₽
3

3F3-03210-1 Carburetor lower ass'y
70C/60C-

Carburetor lower ass'y
70C/60C-

17 360 ₽
