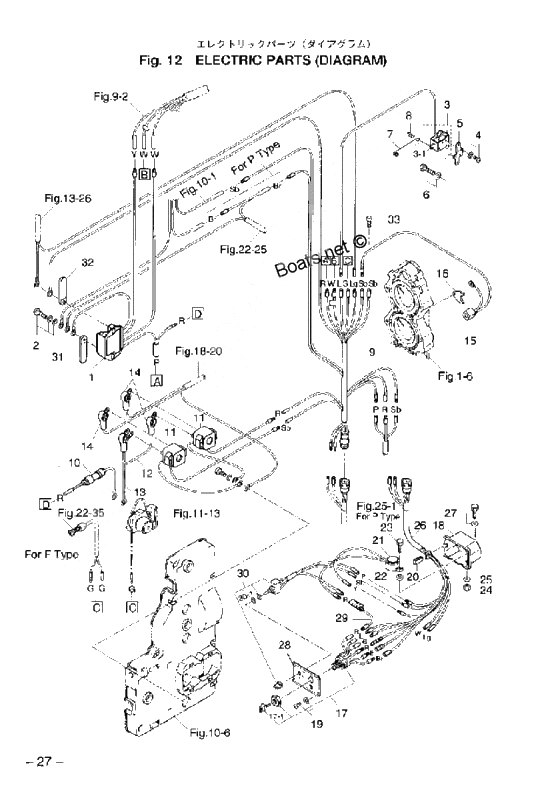

Electric parts (diagram) для Tohatsu M70C - 2002 года выпуска
-
№АртикулНазвание
-
13B7-76065-3 Rectifier completeRectifier complete
-
2921503-7625 Stud BoltStud Bolt
-
3361-76050-0 Choke SolenoidChoke Solenoid
-
3-1361-76073-0 Plunger,Choke SolenoidPlunger,Choke Solenoid
-
4921503-6406 Stud BoltStud Bolt
-
53C8-76055-0 Bracket choke solenoidBracket choke solenoid
-
6910103-6616 BoltBolt
-
73F3-76057-0 Hook choke solenoidHook choke solenoid
-
8951403-0312 Spring WasherSpring Washer
-
93F3-76110-1 Cord ass'y aCord ass'y a
-
103C7-76062-1 Fuse wire ass'y
FOR PTT TYPEFuse wire ass'y
FOR PTT TYPE -
113C8-72581-0 Solenoid switch b, ptt (dn)
DNSolenoid switch b, ptt (dn)
DN -
113C8-72580-0 Solenoid switch a, ptt (up)
UPSolenoid switch a, ptt (up)
UP -
123C7-72582-0 Cord b solenoid switch (l=220)Cord b solenoid switch (l=220)
-
133C8-72583-1 Cord B Solenoid Switch (L=130)Cord B Solenoid Switch (L=130)
-
143A3-76145-0 Cap Starter Terminal
FOR PTTCap Starter Terminal
FOR PTT -
153F3-76172-0 Over-heat sensor ass'yOver-heat sensor ass'y
-
16353-66024-0 StopperStopper
-
17353-76020-3 Main Switch Ass'y
FOR F TYPEMain Switch Ass'y
FOR F TYPE -
17-13F3-76217-0 Key, main switchKey, main switch
-
17-13F3-76218-0 Key, Main Switch (Earmark)Key, Main Switch (Earmark)
-
17-13F3-76219-0 Key, Main Switch (Earmark)Key, Main Switch (Earmark)
-
183B7-76032-0 Switch box
FOR F TYPESwitch box
FOR F TYPE -
19921503-5510 Stud Bolt
FOR F TYPEStud Bolt
FOR F TYPE -
203B7-76035-0 Grommet, Switch Box
FOR F TYPEGrommet, Switch Box
FOR F TYPE -
213B7-76171-0 Over-heat buzzer b
FOR F TYPEOver-heat buzzer b
FOR F TYPE -
223B7-06305-0 Mount Rubber, 9-16-4.3
FOR F TYPEMount Rubber, 9-16-4.3
FOR F TYPE -
23910103-0525 Bolt
FOR F TYPEBolt
FOR F TYPE -
24930103-0500 Nut
FOR F TYPENut
FOR F TYPE -
25941303-0500 Spring Washer
FOR F TYPESpring Washer
FOR F TYPE -
263B7-76119-0 Cord ass'y c
FOR F TYPECord ass'y c
FOR F TYPE -
27910103-6625 Bolt
FOR F TYPEBolt
FOR F TYPE -
283B7-76201-0 Panel, main switch(for ptt type)
FOR F, PTT TYPEPanel, main switch(for ptt type)
FOR F, PTT TYPE -
283B7-76200-0 Panel, main switch
FOR F TYPEPanel, main switch
FOR F TYPE -
29353-72546-0 Assist Cord(Red)
FOR F, PTT TYPEAssist Cord(Red)
FOR F, PTT TYPE -
31309-06972-0 Clamp,6.5-47.5P
FOR F, PTT TYPEClamp,6.5-47.5P
FOR F, PTT TYPE -
32353-06972-0 ClampClamp
-
333A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
