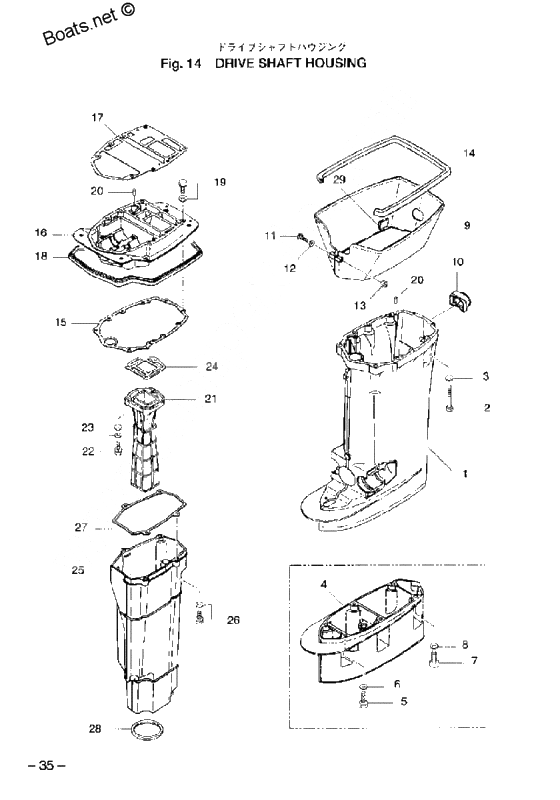

Drive shaft housing для Tohatsu M70C - 2002 года выпуска
-
№АртикулНазвание
-
23A3-61017-2 Bolt 8-100Bolt 8-100
-
3940203-0800 WasherWasher
-
73B7-60001-2 Bolt, 10-40
FOR TRANSOM ULBolt, 10-40
FOR TRANSOM UL -
93F3S61210-0 Splash panSplash pan
-
103F3-61212-0 Grommet Splash PanGrommet Splash Pan
-
12940103-0500 WasherWasher
-
13930403-0500 Nylon NutNylon Nut
-
143F3-61213-0 Seal Rubber Splash PanSeal Rubber Splash Pan
-
153F3-61012-0 Gasket drive shaft housingGasket drive shaft housing
-
163F3S01301-0 Engine baseEngine base
-
173F3-01303-1 Gasket engine base
T=1MMGasket engine base
T=1MM -
183F3-67116-0 Seal Rubber Engine BaseSeal Rubber Engine Base
-
19910103-5630 BoltBolt
-
20345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
213F3-02311-0 Exhaust PipeExhaust Pipe
-
22910103-6835 BoltBolt
-
23940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
243F3-02312-0 Gasket exhaust pipeGasket exhaust pipe
-
253F3-61180-0 Exhaust HousingExhaust Housing
-
273F3-61181-0 Gasket exhaust housingGasket exhaust housing
-
283F3-61182-0 Grommet exhaust housingGrommet exhaust housing
-
293C7-61216-0 Set rubber,splash panSet rubber,splash pan
