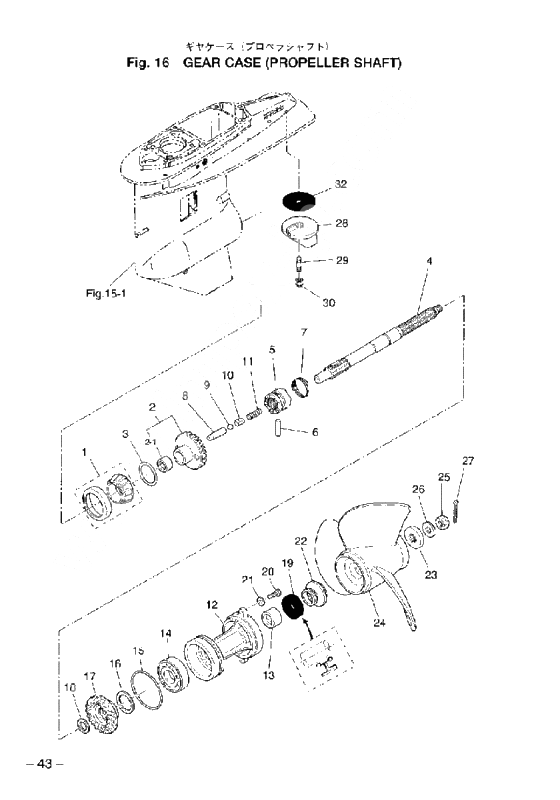

Gear case (propeller shaft) для Tohatsu M70C - 2002 года выпуска

№

Артикул

Название
1

3C7-60215-0 Bearing, 30209

Bearing, 30209

3 820 ₽
2

3J5-64010-0 Bevel Gear A Ass'y

Bevel Gear A Ass'y

20 820 ₽
2-1

3B7-64011-0 Needle Bearing, 25-32-26

Needle Bearing, 25-32-26

2 500 ₽
3

3B7-64015-0 Shim, 47-57-0.15

Shim, 47-57-0.15

140 ₽
3

3B7-64016-0 Shim, 47-57-0.1

Shim, 47-57-0.1

210 ₽
4

3B7-64211-0 Propeller Shaft

Propeller Shaft

31 090 ₽
5

3C7-64215-0 Clutch

Clutch

20 050 ₽
6

3B7-64218-0 Clutch Pin

Clutch Pin

280 ₽
7

3B7-64219-0 Snap, Clutch Pin

Snap, Clutch Pin

230 ₽
8

3B7-64223-0 Push rod, clutch

Push rod, clutch

640 ₽
9

965002-1609 Ball

Ball

320 ₽
10

3B7-64222-0 Spring Holder, Clutch

Spring Holder, Clutch

1 780 ₽
11

346-64221-0 Spring Clutch

Spring Clutch

170 ₽
12

3B7S60101-1 Housing propeller shaft

Housing propeller shaft

6 810 ₽
13

3B7-60211-0 Needle Bearing, 30-40-30

Needle Bearing, 30-40-30

3 690 ₽
14

9601-0-6208 Ball bearing, 6208

Ball bearing, 6208

1 950 ₽
15

3B7-60103-0 O-Ring

O-Ring

1 310 ₽
16

3B7-64036-0 Shim , 42-50-0.15
T=0.15

Shim , 42-50-0.15
T=0.15

140 ₽
16

3B7-64037-0 Shim, 42-50-0.1
T=0.10

Shim, 42-50-0.1
T=0.10

140 ₽
17

3J5-64093-0 Bevel Gear C

Bevel Gear C

19 500 ₽
18

3B7-64032-0 Washer, t=3.2
FOR BEVEL GEAR C

Washer, t=3.2
FOR BEVEL GEAR C

1 150 ₽
18

3B7-64034-0 Washer, t=3.0
FOR BEVEL GEAR C

Washer, t=3.0
FOR BEVEL GEAR C

1 150 ₽
18

3B7-64035-0 Washer, t=3.0
FOR BEVEL GEAR C

Washer, t=3.0
FOR BEVEL GEAR C

1 150 ₽
19

3B7-60111-0 Oil seal, 30-50-12

Oil seal, 30-50-12

3 290 ₽
20

3C7-60108-0 Bolt 8-30 precoated

Bolt 8-30 precoated

280 ₽
21

940203-0800 Washer

Washer

110 ₽
22

3B7-64231-1 Thrust holder, propeller

Thrust holder, propeller

5 810 ₽
23

3B7-64233-0 Stopper Propeller

Stopper Propeller

3 360 ₽
24

3C7-64541-0 Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)

Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)

28 390 ₽
24

3C7-64554-0 Propeller v2100(3x330x521)

Propeller v2100(3x330x521)

19 780 ₽
24

3B7-64523-1 Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)

Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)

27 560 ₽
3N4B64523-1 Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)

Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)

27 710 ₽
24

3B7-64527-1 Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)

Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)

23 330 ₽
3N4B64527-1 Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)

Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)

28 980 ₽
24

3B7-64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

23 330 ₽
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

28 980 ₽
24

3C7-64536-0 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

28 390 ₽
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)

28 980 ₽
25

353-64121-0 Nut Propeller

Nut Propeller

1 150 ₽
26

345-64124-0 Washer

Washer

600 ₽
27

951503-0325 Split Pin

Split Pin

210 ₽
28

3B7-60217-1 Trim Tab

Trim Tab

1 670 ₽
32

3B7-60219-0 Packing, Trim Tab

Packing, Trim Tab

540 ₽
