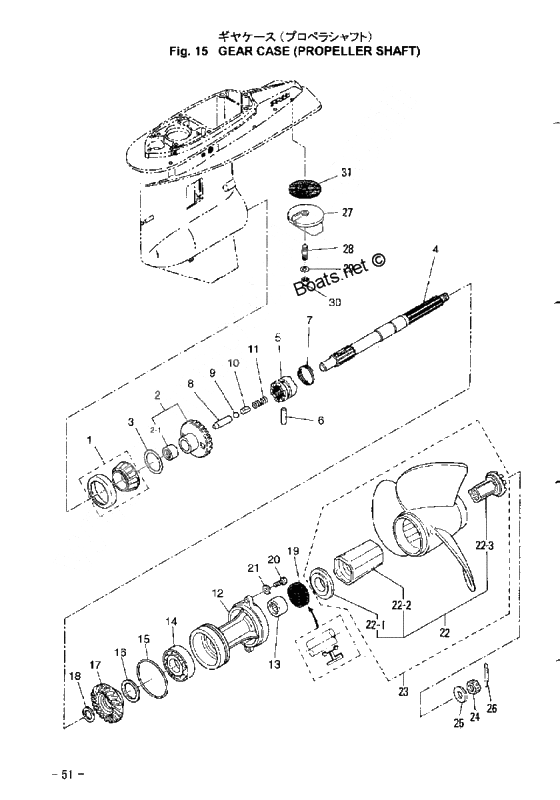

Gear case (propeller shaft) для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
13C7-60215-0 Bearing, 30209Bearing, 30209
-
23D8-64010-0 Bevel Gear A Ass'yBevel Gear A Ass'y
-
2-13B7-64011-0 Needle Bearing, 25-32-26Needle Bearing, 25-32-26
-
33B7-64015-0 Shim, 47-57-0.15Shim, 47-57-0.15
-
33B7-64016-0 Shim, 47-57-0.1Shim, 47-57-0.1
-
43B7-64211-0 Propeller ShaftPropeller Shaft
-
53C7-64215-0 ClutchClutch
-
63B7-64218-0 Clutch PinClutch Pin
-
73B7-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
83B7-64223-0 Push rod, clutchPush rod, clutch
-
9965002-1609 BallBall
-
103B7-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
11346-64221-0 Spring ClutchSpring Clutch
-
123B7S60101-1 Housing propeller shaftHousing propeller shaft
-
133B7-60211-0 Needle Bearing, 30-40-30Needle Bearing, 30-40-30
-
149601-0-6208 Ball bearing, 6208Ball bearing, 6208
-
153B7-60103-0 O-RingO-Ring
-
163B7-64037-0 Shim, 42-50-0.1Shim, 42-50-0.1
-
173C7-64093-0 Bevel Gear CBevel Gear C
-
183B7-64032-0 Washer, t=3.2Washer, t=3.2
-
183B7-64034-0 Washer, t=3.0Washer, t=3.0
-
183B7-64035-0 Washer, t=3.0Washer, t=3.0
-
193B7-60111-0 Oil seal, 30-50-12Oil seal, 30-50-12
-
203C7-60108-0 Bolt 8-30 precoatedBolt 8-30 precoated
-
21940203-0800 WasherWasher
-
223E0-64238-0 Poropeller hub kitPoropeller hub kit
-
22-13E0-64235-0 Foward Thrust WasherFoward Thrust Washer
-
22-23E0-64236-0 Drive sleeveDrive sleeve
-
22-33E0-64237-0 Adapter, drive sleeveAdapter, drive sleeve
-
233E0-64189-0 Propeller m-17 (3x336x432)Propeller m-17 (3x336x432)
-
233E0-64194-0 Propeller m-1900 (3x330x483)Propeller m-1900 (3x330x483)
-
233E0-64196-0 Poropeller m-21 (3x324x533)Poropeller m-21 (3x324x533)
-
233E0-64176-0 Propeller m-11(3x355x279)Propeller m-11(3x355x279)
-
233E0-64181-0 Propeller m-13 (3x355x330)Propeller m-13 (3x355x330)
-
233E0-64185-0 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
STDProp m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
STD -
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
-
24353-64121-0 Nut PropellerNut Propeller
-
25345-64124-0 WasherWasher
-
26951503-0325 Split PinSplit Pin
-
273B7-60217-1 Trim TabTrim Tab
-
29940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
30930403-0800 Nylon NutNylon Nut
-
313B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
313E0-64187-0 Propeller m-16(3x336x406)Propeller m-16(3x336x406)
