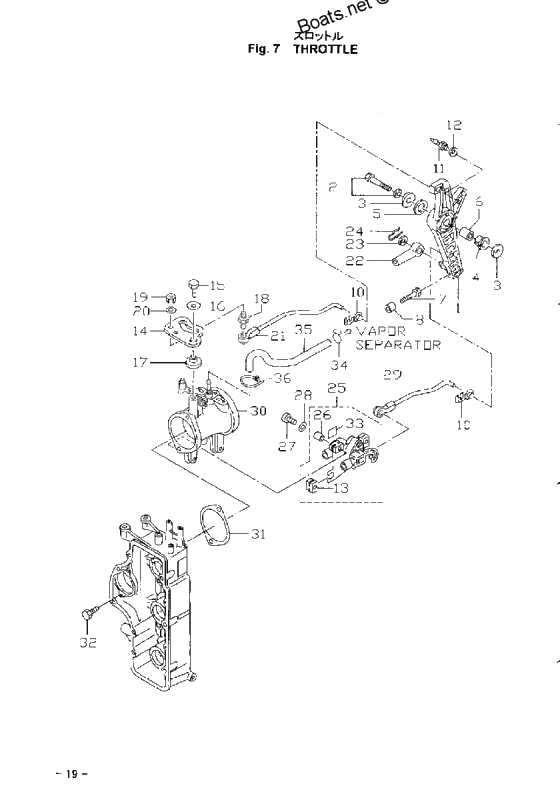

Throttle для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
13B7B63711-3 Advancer ArmAdvancer Arm
-
2910103-6835 BoltBolt
-
33B7-63730-0 WasherWasher
-
43B7-63713-0 BushingBushing
-
53B7-63731-0 WasherWasher
-
63B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
7910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
8353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
103B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
113B7-05244-0 Ball joint cBall joint c
-
12941303-0600 New partNew part
-
133T5-10107-0 Mount RubberMount Rubber
-
143T9-63718-0 Throttle CamThrottle Cam
-
15910103-6618 BoltBolt
-
16346-67115-0 WasherWasher
-
173T5-63721-0 BushingBushing
-
18346-05228-0 New partNew part
-
19930203-0600 NutNut
-
20940103-0600 WasherWasher
-
213T9-63716-0 Звено дросселяЗвено дросселя
-
223B7-83715-0 Cable JointCable Joint
-
23353-83719-0 WasherWasher
-
24951603-0800 R-PinR-Pin
-
253T5-10110-0 TPS Ass'yTPS Ass'y
-
263T5-10128-0 Collar, 4.2-6-10.5Collar, 4.2-6-10.5
-
27921503-6420 Stud BoltStud Bolt
-
283T5-10129-0 WasherWasher
-
293T9-10109-0 Tps linkTps link
-
303T9-10100-0 Throttle body ass'yThrottle body ass'y
-
313T5-10104-0 Gasket, Throttle BodyGasket, Throttle Body
-
323T5-02241-0 Bolt, 6-25 PrecoatedBolt, 6-25 Precoated
-
333T5-72195-0 Lavel, TPSLavel, TPS
-
34338-01133-0 ClipClip
-
363T5-84398-0 Band Lead Wire 104Band Lead Wire 104
