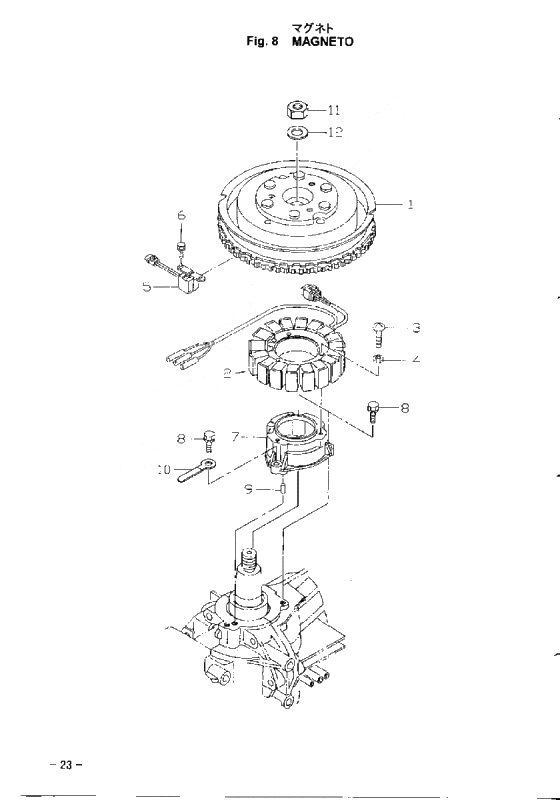

Magneto для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
13T9-06101-0 Flywheel
F4T602-71Flywheel
F4T602-71 -
23T5-06123-0 Alternator Ass'yAlternator Ass'y
-
3921503-0635 Stud BoltStud Bolt
-
4941303-0600 New partNew part
-
53T5-06145-0 Pick Up CoilPick Up Coil
-
6910103-6512 BoltBolt
-
73T5-06008-0 Bracket, coilBracket, coil
-
8910103-7625 BoltBolt
-
9334-65012-0 СтопорСтопор
-
10309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
11353-00132-0 Nut 18P1.5Nut 18P1.5
-
12353-00133-0 WasherWasher
