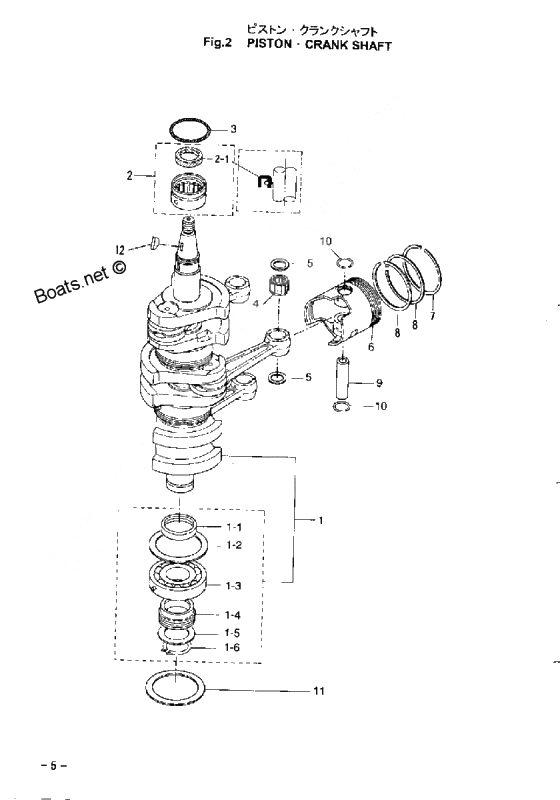

Piston & crank shaft для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
13T9-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
13T5-00121-0 Oil Seal 36-46-6Oil Seal 36-46-6
-
1-13B7-00116-0 Spacer, 40-52-7Spacer, 40-52-7
-
1-23B7-00115-0 WasherWasher
-
1-43B7-09060-0 Drive gear, oil pumpDrive gear, oil pump
-
1-5353-64038-0 Shim,36-44-0.1Shim,36-44-0.1
-
1-5353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
1-5353-64037-0 Shim,36-44-0.15Shim,36-44-0.15
-
1-6945107-3500 C-RingC-Ring
-
23T5-00113-0 Main Bearing UpperMain Bearing Upper
-
3353-00108-0 O-RingO-Ring
-
43C7-00042-0 Needle bearing, 20-25-28Needle bearing, 20-25-28
-
5353-00046-0 WasherWasher
-
63T9-00001-0 ПоршеньПоршень
-
63T9-00004-0 Piston (0.5 o/s)
OPTPiston (0.5 o/s)
OPT -
73B7-00011-0 1-е поршневое кольцо1-е поршневое кольцо
-
73B7-00014-0 1-е поршневое кольцо
OPT1-е поршневое кольцо
OPT -
83B7-00012-0 2-е поршневое кольцо2-е поршневое кольцо
-
83B7-00015-0 2-е поршневое кольцо
OPT2-е поршневое кольцо
OPT -
9360-00021-0 Палец поршняПалец поршня
-
10353-00024-1 ClipClip
-
12334-00131-0 Key MagnetoKey Magneto
