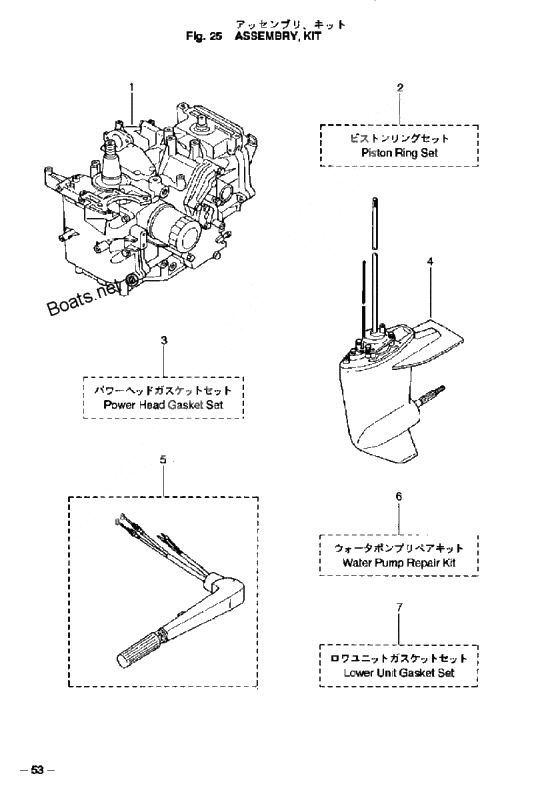

Assembly kit для Tohatsu MFS9.9A - 2002 года выпуска
-
№АртикулНазвание
-
13H8B87100-0 Engine short blockEngine short block
-
23H6-00014-0 Piston Ring Top 0.5 O/SPiston Ring Top 0.5 O/S
-
23H6-00015-0 Piston Ring 2nd 0.5 O/SPiston Ring 2nd 0.5 O/S
-
23H6-87123-0 Кольца поршневыеКольца поршневые
-
23H6-00016-0 Piston Ring Oil 0.5 O/SPiston Ring Oil 0.5 O/S
-
23H6-00011-0 Ring piston topRing piston top
-
23H6-00012-0 Ring piston 2ndRing piston 2nd
-
23H6-00013-0 Ring piston oilRing piston oil
-
23H6-87124-0 Кольца поршневыеКольца поршневые
-
33R0-07422-0 New partNew part
-
33H8-07632-0 O-RingO-Ring
-
33R3-00121-0 Oil Seal, 32-44-9Oil Seal, 32-44-9
-
33R3-02305-0 Exhaust CoverExhaust Cover
-
33H8-07631-0 O-RingO-Ring
-
33R3-02104-0 Gasket, inlet manifoldGasket, inlet manifold
-
3346-01032-0 New partNew part
-
33H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
33R0-02011-0 Gasket, carburetorGasket, carburetor
-
33R3-01144-0 O-RingO-Ring
-
33H8-87121-0 Power Head Gasket SetPower Head Gasket Set
-
33F3-02012-0 O-RingO-Ring
-
33R3-07432-0 O-RingO-Ring
-
33H8-01005-0 Gasket, Cyl. HeadGasket, Cyl. Head
-
3345-62415-0 O-RingO-Ring
-
33R3-07442-0 GasketGasket
-
33H8-01024-0 Gasket, head coverGasket, head cover
-
33H8-07635-0 O-RingO-Ring
-
33H8-00121-0 Oil seal, 32-48-8Oil seal, 32-48-8
-
43V3S87301-0 Lower unit ass'yLower unit ass'y
-
43V3S87302-0 Lower unit ass'y lLower unit ass'y l
-
53V3S63003-0 Tiller handle ass'yTiller handle ass'y
-
63V3-87322-0 Water pump repair kit
42089A5Water pump repair kit
42089A5 -
73V3-87321-0 Lower unit gasket set(not for sale)
41365A3Lower unit gasket set(not for sale)
41365A3
