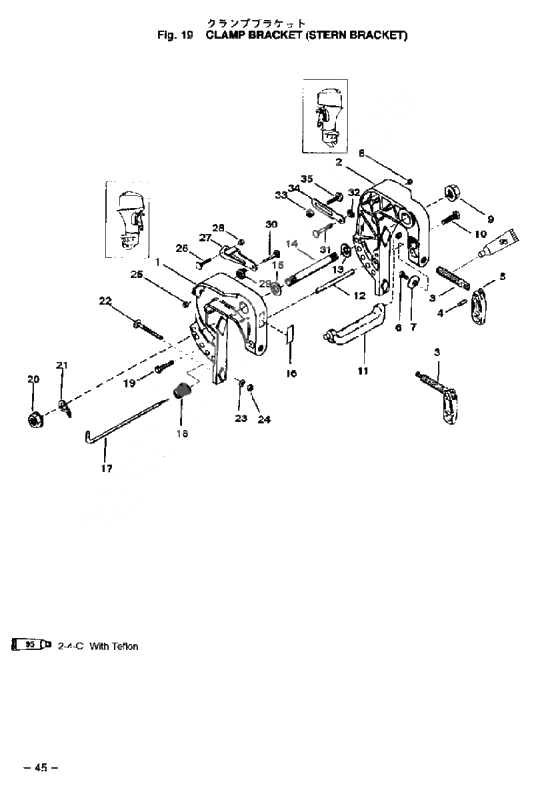

Clamp bracket (stern bracket) для Tohatsu MFS9.9A - 2002 года выпуска
-
№АртикулНазвание
-
13V3S62112-0 Зажимной кронштейн
StarboardЗажимной кронштейн
Starboard -
33V3S62103-0 Thumb screw ass'yThumb screw ass'y
-
43V3-62104-0 Rivet
NSSRivet
NSS -
53V3-62102-0 Handle
NSSHandle
NSS -
63V3-62105-0 BoltBolt
-
73V3-62101-0 Washer,thumb screwWasher,thumb screw
-
83V3-62456-0 Nut(0.250)Nut(0.250)
-
93V3-62124-0 Nut (0.875)Nut (0.875)
-
113V3-67521-0 HandleHandle
-
123V3-62117-0 SpacerSpacer
-
133V3-62126-0 Washer,tilt tubeWasher,tilt tube
-
143V3-62193-0 Tilt tubeTilt tube
-
163H8-72049-0 Labe
for MF & EFLabe
for MF & EF -
173V3-62121-0 Tilt pin ass'yTilt pin ass'y
-
183V3-62122-0 Spring WasherSpring Washer
-
213V3-62114-0 Clip safetyClip safety
-
223V3-62133-0 Bolt(0.312x3.50)Bolt(0.312x3.50)
-
233V3-62134-0 WasherWasher
-
243V3-62139-0 Nut(0.312)Nut(0.312)
-
263V3-62432-0 Screw(0.250x1.00)Screw(0.250x1.00)
-
273V3-62431-0 Lever,tilt starboard sideLever,tilt starboard side
-
293V3-62434-0 Spring,tilt stop lever screwSpring,tilt stop lever screw
-
303V3-62452-0 Screw(0.250x1.00)Screw(0.250x1.00)
-
323V3-62459-0 WasherWasher
-
343V3-62454-0 Strap,tilt stop-port sideStrap,tilt stop-port side
