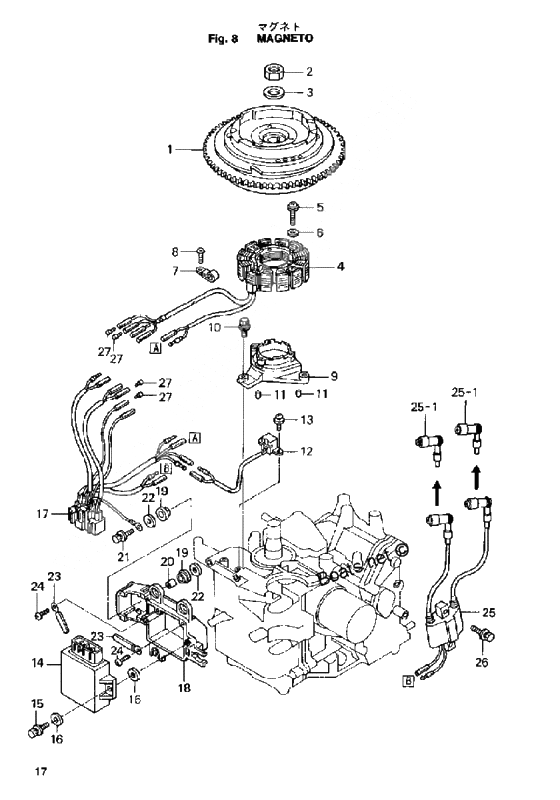

Magneto для Tohatsu MFS9.9A - 2002 года выпуска
-
№АртикулНазвание
-
13H8-06096-0 Flywheel cup
With Ring GearFlywheel cup
With Ring Gear -
2931121-1600 NutNut
-
33H8-00133-0 WasherWasher
-
43H8-06023-0 Alternator Ass'yAlternator Ass'y
-
5921503-6630 Stud BoltStud Bolt
-
6940203-0600 WasherWasher
-
7345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
8921503-0616 Stud BoltStud Bolt
-
93H8-06008-0 Bracket, alternatorBracket, alternator
-
10910103-7625 BoltBolt
-
11345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
123H8-06071-0 Пульсерная катушка №Пульсерная катушка №
-
13921503-6516 Stud BoltStud Bolt
-
143H8-06060-0 C.d. unit (7215)C.d. unit (7215)
-
15910103-0620 BoltBolt
-
163C8-66308-0 New partNew part
-
173H8-06167-0 Cord ass'y, c.d. unitCord ass'y, c.d. unit
-
183H8-06901-0 Electric bracketElectric bracket
-
193F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
20353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
21910103-6625 BoltBolt
-
23398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
253H8-06040-0 Ignition CoilIgnition Coil
-
25-13H6-06921-0 Plug cap
ResistancePlug cap
Resistance -
3H6-06999-0 Plug capPlug cap
-
273A3-76037-0 Plug B Cable Terminal
4 for MF; 2 for EF & EPPlug B Cable Terminal
4 for MF; 2 for EF & EP
