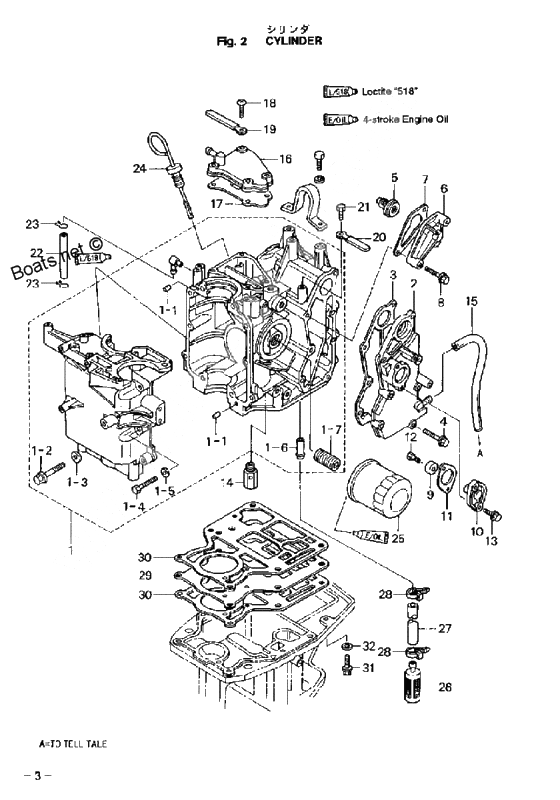

Cylinder для Tohatsu MFS9.9A - 2002 года выпуска
-
№АртикулНазвание
-
13H8B01100-0 Cylinder & Crank Case Ass'yCylinder & Crank Case Ass'y
-
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-23H8-01012-0 Bolt,8-50Bolt,8-50
-
1-3940121-0800 WasherWasher
-
1-4916119-0630 BoltBolt
-
1-5940121-0600 WasherWasher
-
1-63H8-02093-0 ЗолотникЗолотник
-
1-73H8-07636-0 Bolt, Oil FilterBolt, Oil Filter
-
23R3B02301-0 Exhaust CoverExhaust Cover
-
33R3-02305-0 Exhaust CoverExhaust Cover
-
4910124-5625 BoltBolt
-
5350-01030-1 ThermostatThermostat
-
63H6B01031-0 Cap,ThermostatCap,Thermostat
-
7346-01032-0 New partNew part
-
9369-60218-1 New partNew part
-
103H8B01143-0 Cap, anodeCap, anode
-
113R3-01144-0 O-RingO-Ring
-
12910103-0616 BoltBolt
-
143R3-07620-0 Plunger ass'yPlunger ass'y
-
163R3B07431-0 Cap,Breather VoverCap,Breather Vover
-
173R3-07432-0 O-RingO-Ring
-
19398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
20309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
21910103-0612 New partNew part
-
23338-02215-0 ClipClip
-
243R3-07421-0 Oil level gaugeOil level gauge
-
253R0-07615-0 Oil Filter Ass'yOil Filter Ass'y
-
263R3-07410-0 Oil Strainer Ass'yOil Strainer Ass'y
-
2798AH10020-0 Hose,200Hose,200
-
293R3-07441-0 Plate, oil panPlate, oil pan
-
303R3-07442-0 GasketGasket
-
313R3-61017-0 Bolt 8-35Bolt 8-35
-
32940103-0800 Washer -> 940113-0800Washer -> 940113-0800
Все узлы модели:
- Assembly kit
- Bottom cowl & fuel connector
- Camshaft, oil pump
- Carburetor
- Clamp bracket (stern bracket)
- Cylinder head
- • Cylinder
- Drive shaft housing
- Electric parts
- Fuel tank (remote)
- Gear case (drive shaft & water pump)
- Gear case (propeller shaft)
- Inlet manifold & fuel pump
- Intake valve & exhaust valve
- Magneto
- Piston & crankshaft
- Recoil starter
- Shift & stop switch
- Shift (for ep)
- Starter motor
- Swivel bracket
- Tiller handle
- Top cowl
