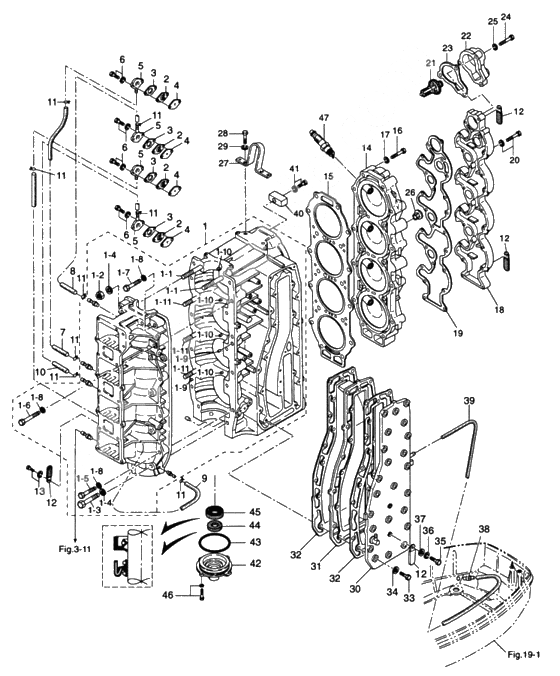

Cylinder - crank case для Tohatsu M115A2 - 2003 года выпуска
-
№АртикулНазвание
-
13C7B01100-2 Cylinder & Crank Case Ass'yCylinder & Crank Case Ass'y
-
1-1915324-1065 Stud BoltStud Bolt
-
1-10345-00117-0 Dowel PinDowel Pin
-
1-11915324-1055 Stud BoltStud Bolt
-
1-2931121-1000 NutNut
-
1-3916129-1065 BoltBolt
-
1-43B7-01116-0 WasherWasher
-
1-5916124-0850 BoltBolt
-
1-6916124-0865 BoltBolt
-
1-7916124-0840 BoltBolt
-
1-8345-01015-0 WasherWasher
-
1-9345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
23C7-01151-0 Check valve bCheck valve b
-
33C7-01153-0 Gasket a, check valveGasket a, check valve
-
43C7-01154-0 Gasket b, check valveGasket b, check valve
-
5353-01152-0 Cap,check valveCap,check valve
-
6910103-5525 BoltBolt
-
79807-3-0220 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
89807-3-0320 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
99807-3-0410 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
109807-3-0270 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
11338-01133-0 ClipClip
-
12309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
13910103-6612 BoltBolt
-
143C7B01002-1 Cylinder headCylinder head
-
3C7B01002-0 Cylinder headCylinder head
-
153C7-01005-0 Gasket, Cyl. HeadGasket, Cyl. Head
-
16916119-0860 BoltBolt
-
17345-01015-0 WasherWasher
-
183C7B01021-0 Cover cylinder headCover cylinder head
-
193C7-01024-0 Gasket, head coverGasket, head cover
-
20910121-6635 BoltBolt
-
213C7-01030-0 New partNew part
-
223B7B01031-0 Cap thermostatCap thermostat
-
23353-01032-0 Прокладка крышки термостатаПрокладка крышки термостата
-
24910113-0645 BoltBolt
-
910103-0645 BoltBolt
-
25941303-0600 New partNew part
-
263B7-01046-0 PlugPlug
-
28910114-0820 BoltBolt
-
29941322-0800 Spring WasherSpring Washer
-
303C7B02300-0 Exhaust cover outerExhaust cover outer
-
313C7B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
323C7-02305-0 Gasket, exhaust coverGasket, exhaust cover
-
33910114-0835 BoltBolt
-
34940121-0800 WasherWasher
-
35910114-0630 BoltBolt
-
36941322-0600 Spring WasherSpring Washer
-
37940121-0600 WasherWasher
-
38353-01138-0 Water NippleWater Nipple
-
403B7-60218-1 AnodeAnode
-
41910113-5630 BoltBolt
-
423B7-01291-1 Head lower, crank caseHead lower, crank case
-
43171-00053-0 O-RingO-Ring
-
443C7-01215-0 Oil Seal, 19.6-35-10Oil Seal, 19.6-35-10
-
453B7-00121-0 Oil seal, 35-58-9Oil seal, 35-58-9
-
46910113-5620 BoltBolt
-
479701-0-1009 New part
NGK BP8HS-10New part
NGK BP8HS-10
