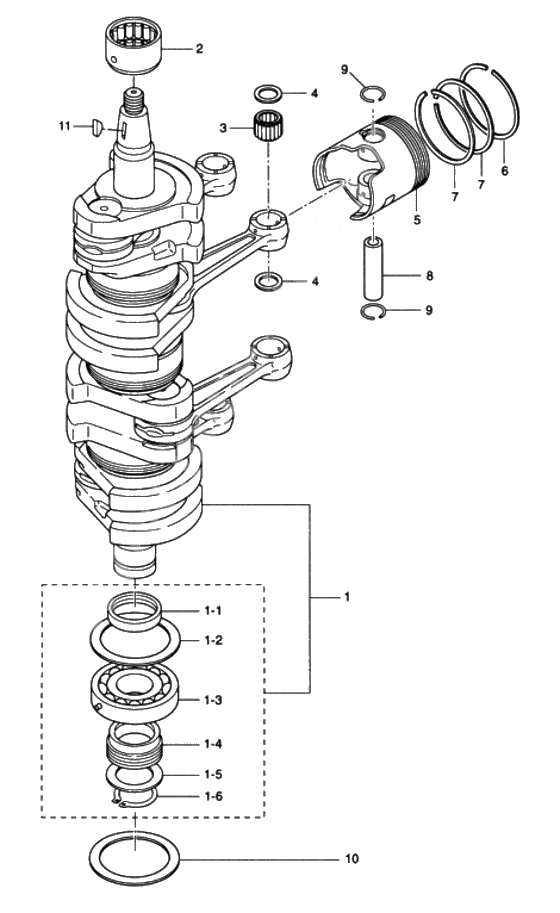

Piston & crank shaft для Tohatsu M115A2 - 2003 года выпуска
-
№АртикулНазвание
-
13C7-00050-2 Crankshaft Ass'yCrankshaft Ass'y
-
1-13B7-00116-0 Spacer, 40-52-7Spacer, 40-52-7
-
1-23B7-00115-0 WasherWasher
-
1-33C7-00118-0 Bearing, 6208Bearing, 6208
-
1-43B7-09060-0 Drive gear, oil pumpDrive gear, oil pump
-
1-5353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
1-5353-64037-0 Shim,36-44-0.15Shim,36-44-0.15
-
1-5353-64038-0 Shim,36-44-0.1Shim,36-44-0.1
-
1-6945107-3500 C-RingC-Ring
-
23C7-00113-0 Main Bearing, UpperMain Bearing, Upper
-
33C7-00042-0 Needle bearing, 20-25-28Needle bearing, 20-25-28
-
4353-00046-0 WasherWasher
-
53C7-00001-1 Piston (std)Piston (std)
-
53C7-00004-1 Piston (0.5mm o/s)
OPTIONPiston (0.5mm o/s)
OPTION -
63C7-00011-0 Piston ring 1st(std)Piston ring 1st(std)
-
63C7-00014-0 Поршневые кольца
OPTIONПоршневые кольца
OPTION -
73C7-00012-0 Piston ring 2nd(std)Piston ring 2nd(std)
-
73C7-00015-0 Piston ring 2nd(0.5mm o/s)
OPTIONPiston ring 2nd(0.5mm o/s)
OPTION -
8360-00021-0 Палец поршняПалец поршня
-
9353-00024-1 ClipClip
-
103B7-00115-0 WasherWasher
-
11334-00131-0 Key MagnetoKey Magneto
