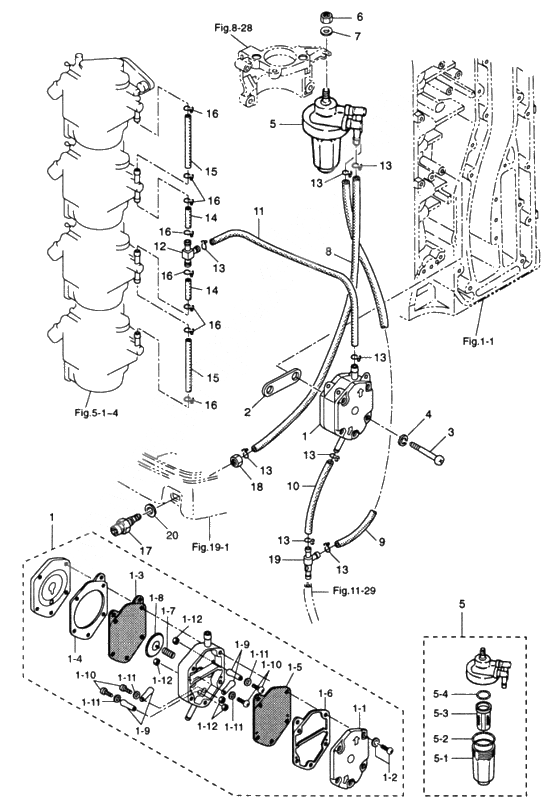

Fuel pump для Tohatsu M115A2 - 2003 года выпуска
-
№АртикулНазвание
-
13C7-04000-1 Топливный насосТопливный насос
-
1-13C7-04004-1 Pump coverPump cover
-
1-11940103-0300 WasherWasher
-
1-12930103-0300 NutNut
-
1-33C7-04005-0 Diaphragm aDiaphragm a
-
1-43C7-04006-0 Gasket a diaphragmGasket a diaphragm
-
1-53C7-04029-0 Diaphragm bDiaphragm b
-
1-63C7-04007-1 Gasket B DiaphragmGasket B Diaphragm
-
1-73C7-04009-0 Spring WasherSpring Washer
-
1-83C7-04022-0 Diaphragm coverDiaphragm cover
-
1-93C7-04044-0 Check ValveCheck Valve
-
2346-04901-0 Gasket fuel pumpGasket fuel pump
-
3921503-0645 Stud BoltStud Bolt
-
4941303-0600 New partNew part
-
53C7-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
5-13B7-02237-0 CupCup
-
5-23B7-02235-0 O-Ring AO-Ring A
-
5-33B7-02234-0 FilterFilter
-
5-43B7-02236-0 O???? bO???? b
-
6930113-0800 Nut
OR 930106-0800Nut
OR 930106-0800 -
7940113-0800 WasherWasher
-
898AB-7-0730 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
998AB-7-0320 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
123C7-02092-0 Соединение трубкиСоединение трубки
-
133C7-02215-0 ClipClip
-
16338-02215-0 ClipClip
-
173C7-70260-0 Соединитель топливныйСоединитель топливный
-
183C7-70253-0 Nut 12p1.25Nut 12p1.25
-
193C7-09075-1 Check Valve CompleteCheck Valve Complete
-
20152-01612-0 PackingPacking
