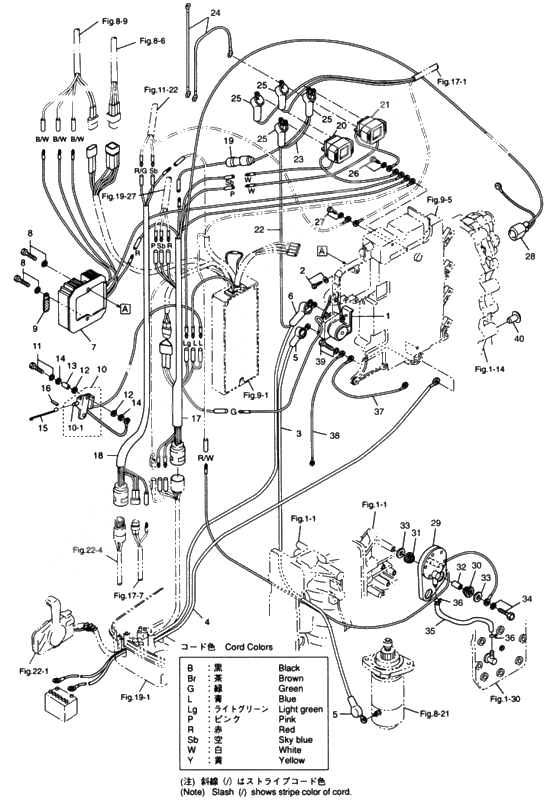

Electric parts (diagram) для Tohatsu M115A2 - 2003 года выпуска
-
№АртикулНазвание
-
1346-76040-0 Starter SolenoidStarter Solenoid
-
2910103-6616 BoltBolt
-
33B7-76141-0 STARTER CORD
L=400STARTER CORD
L=400 -
43B7-76120-0 Battery Cord
L=3000Battery Cord
L=3000 -
53A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
63B7-76145-0 Terminal CapTerminal Cap
-
73C7-76065-0 Rectifier completeRectifier complete
-
8910113-5625 BoltBolt
-
9398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
103C7-76050-0 Choke SolenoidChoke Solenoid
-
10-1353-76073-0 Plunger,Choke SolenoidPlunger,Choke Solenoid
-
11910103-6625 BoltBolt
-
12122-35083-0 Mount RubberMount Rubber
-
13353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
14346-67115-0 WasherWasher
-
15353-76057-2 Hook choke solenoidHook choke solenoid
-
16951403-0312 Spring WasherSpring Washer
-
173C7-76110-1 Cord ass'y aCord ass'y a
-
183C7-76119-0 Cord ass'y cCord ass'y c
-
193C7-76062-1 Fuse wire ass'y
L=450Fuse wire ass'y
L=450 -
203C8-72580-0 Solenoid switch a, ptt (up)
UP / 140A2 #12174~ / 120A2 #21739~Solenoid switch a, ptt (up)
UP / 140A2 #12174~ / 120A2 #21739~ -
213C8-72581-0 Solenoid switch b, ptt (dn)
DN / 140A2 #12174~ / 120A2 #21739~Solenoid switch b, ptt (dn)
DN / 140A2 #12174~ / 120A2 #21739~ -
223C7-72582-0 Cord b solenoid switch (l=220)
L=220Cord b solenoid switch (l=220)
L=220 -
233C7-72583-0 Cord B Solenoid Switch (L=150)
L=150Cord B Solenoid Switch (L=150)
L=150 -
243C8-72583-1 Cord B Solenoid Switch (L=130)
L=130Cord B Solenoid Switch (L=130)
L=130 -
253A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
26910103-6614 BoltBolt
-
27921503-6612 Stud BoltStud Bolt
-
283C7-76172-0 Over-heat sensor ass'yOver-heat sensor ass'y
-
293C7-76180-0 Pressure switch ass'yPressure switch ass'y
-
30346-67113-0 Mount RubberMount Rubber
-
313B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
32346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
33346-67115-0 WasherWasher
-
34910103-6630 BoltBolt
-
363C7-02215-0 ClipClip
-
373B7-76142-0 Ground cord
L=120Ground cord
L=120 -
383C7-76142-0 Ground cord
L=170Ground cord
L=170 -
39910103-6612 BoltBolt
-
403E0-01047-0 Plug 10Plug 10
