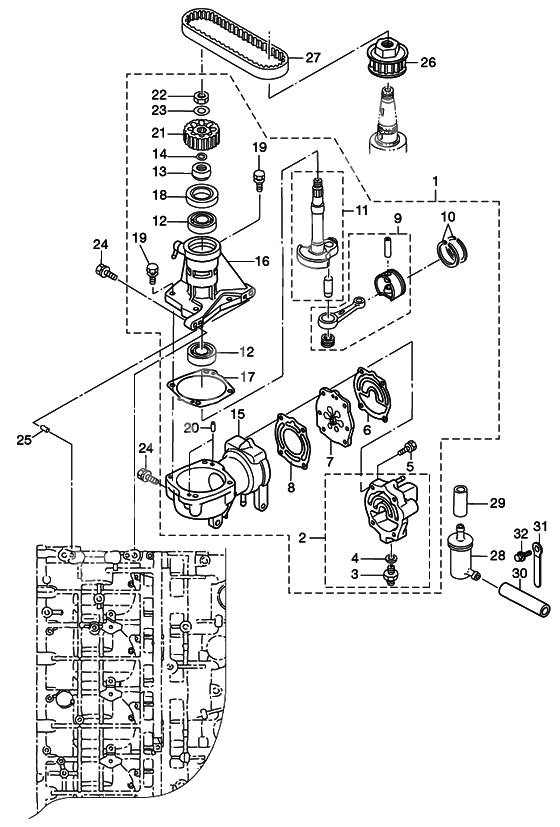

Air compressor для Tohatsu MD115A2 - 2010 года выпуска
-
№АртикулНазвание
-
13HKB10000-0 Air compressor. d115a2Air compressor. d115a2
-
3HKB10000-2 Air compressor. d115a2Air compressor. d115a2
-
23HKB10009-0 Compressor head (with nipple) d115a2Compressor head (with nipple) d115a2
-
33T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
43T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
59101F4-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
63T1-10012-0 Gasket compressor headGasket compressor head
-
73U1-10010-0 Reed valve assy (d115a- air/comp)Reed valve assy (d115a- air/comp)
-
3HK-10010-1 Reed valve assy (d115a- air/comp)Reed valve assy (d115a- air/comp)
-
83T1-10019-0 Gasket valve seatGasket valve seat
-
93T1-87330-0 Connecting rod air compressor pistonConnecting rod air compressor piston
-
103T1-10025-0 Piston ring compressorPiston ring compressor
-
113T1-87331-1 Crank shaft air compressorCrank shaft air compressor
-
129601-0-6203 Ball BearingBall Bearing
-
133T1-10042-0 Collar 13.5-25-13Collar 13.5-25-13
-
143T5-10046-0 O-RingO-Ring
-
153T1B10048-0 Cylinder compressorCylinder compressor
-
163T1B10049-0 Housing compressorHousing compressor
-
173T1-10054-0 Gasket compressor housingGasket compressor housing
-
183T5-10041-0 Oil Seal,25-45-8Oil Seal,25-45-8
-
19910103-5625 BoltBolt
-
20334-65012-0 СтопорСтопор
-
213T1-10062-0 Driven PulleyDriven Pulley
-
22309-00132-0 Nut, MagnetoNut, Magneto
-
233B7-01116-0 WasherWasher
-
24910103-7835 BoltBolt
-
25345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
263T1-10060-0 Drive PulleyDrive Pulley
-
273T1-10061-0 Drive BeltDrive Belt
-
283GF-10130-0 Air filter md40/50b2/75/90c2/115a2 (tldi)Air filter md40/50b2/75/90c2/115a2 (tldi)
-
3098AT130-140 HoseHose
-
31309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
32910103-6612 BoltBolt
