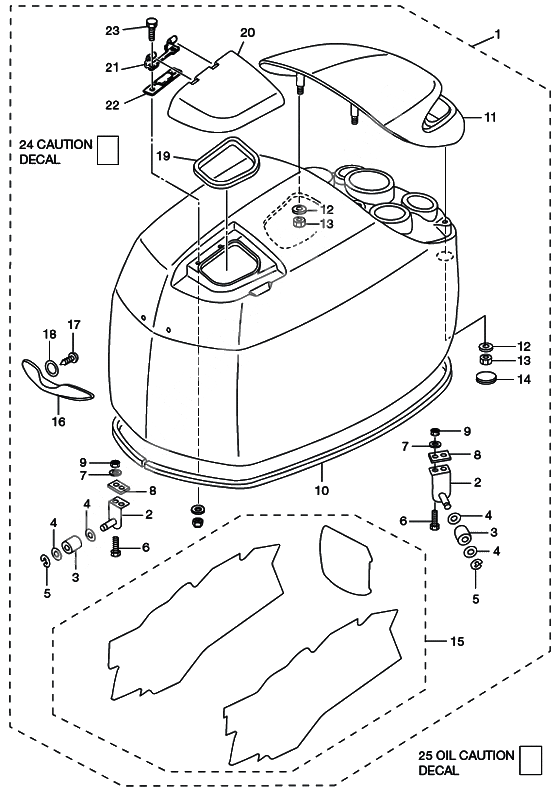

Top cowl для Tohatsu MD115A2 - 2010 года выпуска
-
№АртикулНазвание
-
13HKQ67645-1 Upper motor cover md115a2 (amb) (w/ filler lid)
TOHATSUUpper motor cover md115a2 (amb) (w/ filler lid)
TOHATSU -
3HKQ67645-4 Upper motor cover md115a2 (amb) (w/ filler lid)Upper motor cover md115a2 (amb) (w/ filler lid)
-
13U1Q67645-0 Upper motor cover nsd115a/a2 (amb) w/filler lid
NISSANUpper motor cover nsd115a/a2 (amb) w/filler lid
NISSAN -
23T1-67511-0 Cover stay assyCover stay assy
-
33R0-67517-0 Roller,6.1-14.7-14Roller,6.1-14.7-14
-
4940103-0600 WasherWasher
-
5945303-0500 E-RingE-Ring
-
6910103-0525 BoltBolt
-
7940103-0500 WasherWasher
-
83T1-67516-0 Cover stay plateCover stay plate
-
9930403-0500 Nylon NutNylon Nut
-
103HK-67501-0 Rubber seal umc new (l=2150mm)Rubber seal umc new (l=2150mm)
-
113T1Q67521-0 Tilt handle (amb)Tilt handle (amb)
-
123C8-66308-0 New partNew part
-
13930403-0600 Nylon NutNylon Nut
-
143F3-72618-0 Grommet Power Trim & Tilt SwitchGrommet Power Trim & Tilt Switch
-
153HK-87802-0 Decal set md115a2
TOHATSUDecal set md115a2
TOHATSU -
3HK-87802-1 Decal set md115a2Decal set md115a2
-
153U1N87802-0 Decal set nsd115a
NISSANDecal set nsd115a
NISSAN -
163T1-67660-0 Handle upper motor coverHandle upper motor cover
-
173T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
18345-05122-1 Washer rachetWasher rachet
-
193T1-67213-0 Seal motor coverSeal motor cover
-
203T1Q67209-1 Filler lidFiller lid
-
3T1Q67209-0 Filler lidFiller lid
-
213T1-67212-0 Spring filler lidSpring filler lid
-
223B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
23910103-0616 BoltBolt
-
243C7-72180-3 Caution labelCaution label
-
3C7-72180-0 Caution labelCaution label
-
253T1-72043-0 Oil caution decalOil caution decal
