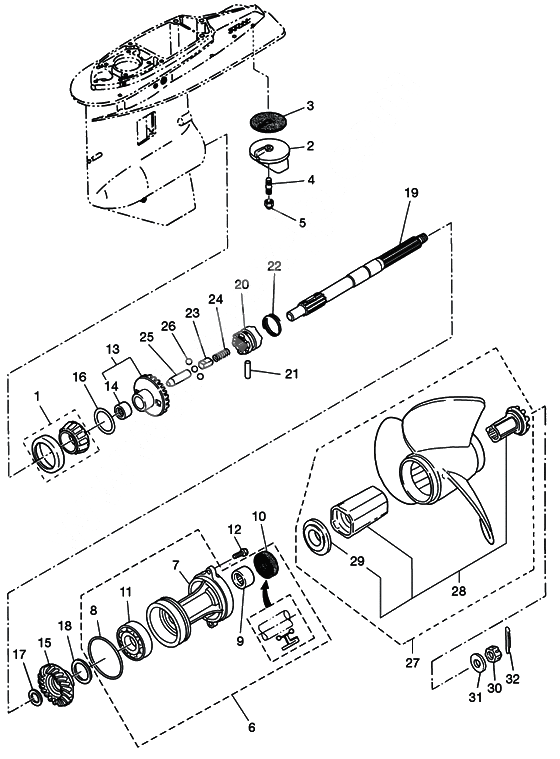

Gear case (propeller shaft) для Tohatsu MD115A2 - 2010 года выпуска
-
№АртикулНазвание
-
13C7-60215-0 Bearing, 30209Bearing, 30209
-
23B7-60217-1 Trim TabTrim Tab
-
33B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
4915303-0825 Stud BoltStud Bolt
-
5930403-0800 Nylon NutNylon Nut
-
63B7Q87323-1 Propeller shaft housing assy (amb)Propeller shaft housing assy (amb)
-
73B7Q60101-1 Housing propeller shaft (amb)Housing propeller shaft (amb)
-
83B7-60103-0 O-RingO-Ring
-
93B7-60211-0 Needle Bearing, 30-40-30Needle Bearing, 30-40-30
-
103B7-60111-0 Oil seal, 30-50-12Oil seal, 30-50-12
-
119601-0-6208 Ball bearing, 6208Ball bearing, 6208
-
123C7-60108-1 Bolt 8-30 precoatedBolt 8-30 precoated
-
3C7-60108-2 Bolt 8-30 precoatedBolt 8-30 precoated
-
133C7-64010-0 Bevel Gear A Ass'yBevel Gear A Ass'y
-
143B7-64011-0 Needle Bearing, 25-32-26Needle Bearing, 25-32-26
-
153T1-64093-0 Bevel gear c (5 dog) reverseBevel gear c (5 dog) reverse
-
163B7-64015-0 Shim, 47-57-0.15Shim, 47-57-0.15
-
163B7-64016-0 Shim, 47-57-0.1Shim, 47-57-0.1
-
173B7-64032-0 Washer, t=3.2Washer, t=3.2
-
173B7-64034-0 Washer, t=3.0Washer, t=3.0
-
173B7-64035-0 Washer, t=3.0Washer, t=3.0
-
183B7-64036-0 Shim , 42-50-0.15Shim , 42-50-0.15
-
183B7-64037-0 Shim, 42-50-0.1Shim, 42-50-0.1
-
193B7-64211-0 Propeller ShaftPropeller Shaft
-
203T1-64215-1 Clutch m60c-140a2 md70b-115aClutch m60c-140a2 md70b-115a
-
3T1-64215-2 Clutch m60c-140a2 md70b-115aClutch m60c-140a2 md70b-115a
-
213B7-64218-0 Clutch PinClutch Pin
-
223B7-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
233T1-64222-0 Spring retainer l=30,5Spring retainer l=30,5
-
24346-64221-0 Spring ClutchSpring Clutch
-
253T1-64223-0 Push RodPush Rod
-
263T1-64224-0 BallBall
-
273T1B64523-0 Prop m-11 115tldi only (14 x 11 pitch)
OPTProp m-11 115tldi only (14 x 11 pitch)
OPT -
273T1B64527-0 Prop m-13 115tldi only (14.0 x 13 pitch)
OPTProp m-13 115tldi only (14.0 x 13 pitch)
OPT -
273T1B64532-0 Prop m-15 115tldi only (13.75 x 15 pitch)
OPTProp m-15 115tldi only (13.75 x 15 pitch)
OPT -
273T1B64534-0 Prop m-16 115tldi only (13.25 x 16 pitch)
OPTProp m-16 115tldi only (13.25 x 16 pitch)
OPT -
273T1B64536-0 Prop m-17 115tldi only (13.25 x 17 pitch)
OPTProp m-17 115tldi only (13.25 x 17 pitch)
OPT -
273T1B64541-0 Prop m-19 115tldi only (13.0 x 19 pitch)
OPTProp m-19 115tldi only (13.0 x 19 pitch)
OPT -
273T1B64545-0 Prop m-21, 115tldi only (12.75 x 21 pitch)
OPTProp m-21, 115tldi only (12.75 x 21 pitch)
OPT -
283T1-64238-0 Propeller hub kit md115 tldi
OPTPropeller hub kit md115 tldi
OPT -
293E0-64235-0 Foward Thrust Washer
OPTFoward Thrust Washer
OPT -
30353-64121-0 Nut PropellerNut Propeller
-
31345-64124-0 WasherWasher
-
32951503-0325 Split PinSplit Pin
