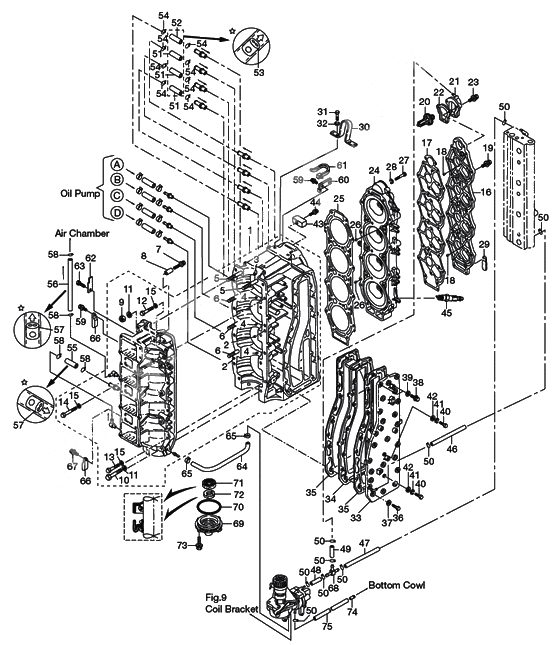

Cylinder & crankcase для Tohatsu MD115A2 - 2010 года выпуска
-
№АртикулНазвание
-
13T1B01100-1 Crank case cylinderCrank case cylinder
-
3T1B01100-0 Crank case cylinderCrank case cylinder
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
33T9-00117-0 Knock, Main BearingKnock, Main Bearing
-
4345-00117-0 Dowel PinDowel Pin
-
5915324-1065 Stud BoltStud Bolt
-
6915324-1055 Stud BoltStud Bolt
-
7910103-0612 New partNew part
-
83T1-76079-0 CollarCollar
-
9931121-1000 NutNut
-
10916129-1065 BoltBolt
-
113B7-01116-0 WasherWasher
-
12916124-0840 BoltBolt
-
13916124-0850 BoltBolt
-
14916124-0865 BoltBolt
-
15345-01015-0 WasherWasher
-
163T1B01021-0 Cover Cylinder HeadCover Cylinder Head
-
173T1-01024-0 Gasket cylinder head coverGasket cylinder head cover
-
18334-65012-0 СтопорСтопор
-
19910121-7625 BoltBolt
-
203C7-01030-0 New partNew part
-
213T9B01060-0 Cup, ThermostatCup, Thermostat
-
223T9-01032-1 Gasket thermostat capGasket thermostat cap
-
239101E3-5640 Bolt & washerBolt & washer
-
243HKB01091-0 Cylinder head d115a2Cylinder head d115a2
-
253T1-01005-0 Gasket cylinder headGasket cylinder head
-
26334-65012-0 СтопорСтопор
-
27916129-0875 BoltBolt
-
28345-01015-0 WasherWasher
-
293T5-06971-1 ClampClamp
-
3T5-06971-0 ClampClamp
-
303C7-01513-2 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
3C7B01513-0 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
319101F4-0820 BoltBolt
-
910114-0820 BoltBolt
-
32941322-0800 Spring WasherSpring Washer
-
333T1B02300-1 Exhaust cover outerExhaust cover outer
-
3T1B02300-0 Exhaust cover outerExhaust cover outer
-
343C7B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
353C7-02305-1 Gasket exhaust coverGasket exhaust cover
-
369101F4-0835 BoltBolt
-
916114-0835 BoltBolt
-
37940121-0800 WasherWasher
-
389161F9-0840 BoltBolt
-
916119-0840 BoltBolt
-
399401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
409101F4-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
41941322-0600 Spring WasherSpring Washer
-
42940121-0600 WasherWasher
-
433B7-60218-1 AnodeAnode
-
44910103-5630 BoltBolt
-
459701-1-1109 Spark plug izfr5jSpark plug izfr5j
-
4698AB-5-0360 Fuel pipe 5mm (1 ea.=1 meter)
EXHAUST COVER - AIR RAIL / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
EXHAUST COVER - AIR RAIL / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4798AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-T-NIPPLE / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-T-NIPPLE / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4898AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - AIR COMPRESSOR / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - AIR COMPRESSOR / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4998AB-5-0115 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - THERMOSTAT CAP / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE - THERMOSTAT CAP / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
50338-02215-0 ClipClip
-
5198AL-4-0080 Lube pipe (1 ea.=1m) must use 393011600m check valve
CYLINDER #1 2 3 (STARBOARD) / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
CYLINDER #1 2 3 (STARBOARD) / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
5298AL-4-0480 Lube pipe (1 ea.=1m) must use 393011600m check valve
CYLINDER #4 (STARBOARD) / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
CYLINDER #4 (STARBOARD) / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
53393-01160-0 Check ValveCheck Valve
-
54338-01133-0 ClipClip
-
5598AL-4-0300 Lube pipe (1 ea.=1m) must use 393011600m check valve
CRANK CASE (STARBOARD) / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
CRANK CASE (STARBOARD) / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
5698AL-4-0280 Lube pipe (1 ea.=1m) must use 393011600m check valve
CRANK CASE (STARBOARD) / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
CRANK CASE (STARBOARD) / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
57393-01160-0 Check ValveCheck Valve
-
58338-01133-0 ClipClip
-
59910103-6612 BoltBolt
-
603T1-76174-0 Stay lead wire bandStay lead wire band
-
613T1-84398-0 Lead wire band 170 (local purchase)Lead wire band 170 (local purchase)
-
623T1-06972-0 PlatePlate
-
63910103-6610 BoltBolt
-
6499AA-2-0650 Vinyl pipe (1 ea.=1 meter)
COMPRESSOR - #4 CRANKCASE / 99AA-2-1000Vinyl pipe (1 ea.=1 meter)
COMPRESSOR - #4 CRANKCASE / 99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
653B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
66345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
679101E3-5612 Bolt & washerBolt & washer
-
683T7-01175-0 T-NippleT-Nipple
-
693B7-01291-2 Head l/crank caseHead l/crank case
-
70171-00053-0 O-RingO-Ring
-
713T9-00121-0 Oil Seal,35-58-9Oil Seal,35-58-9
-
723C7-01215-0 Oil Seal, 19.6-35-10Oil Seal, 19.6-35-10
-
73910103-5620 BoltBolt
-
743T1-01138-0 Water NippleWater Nipple
-
7598AB-5-0500 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
