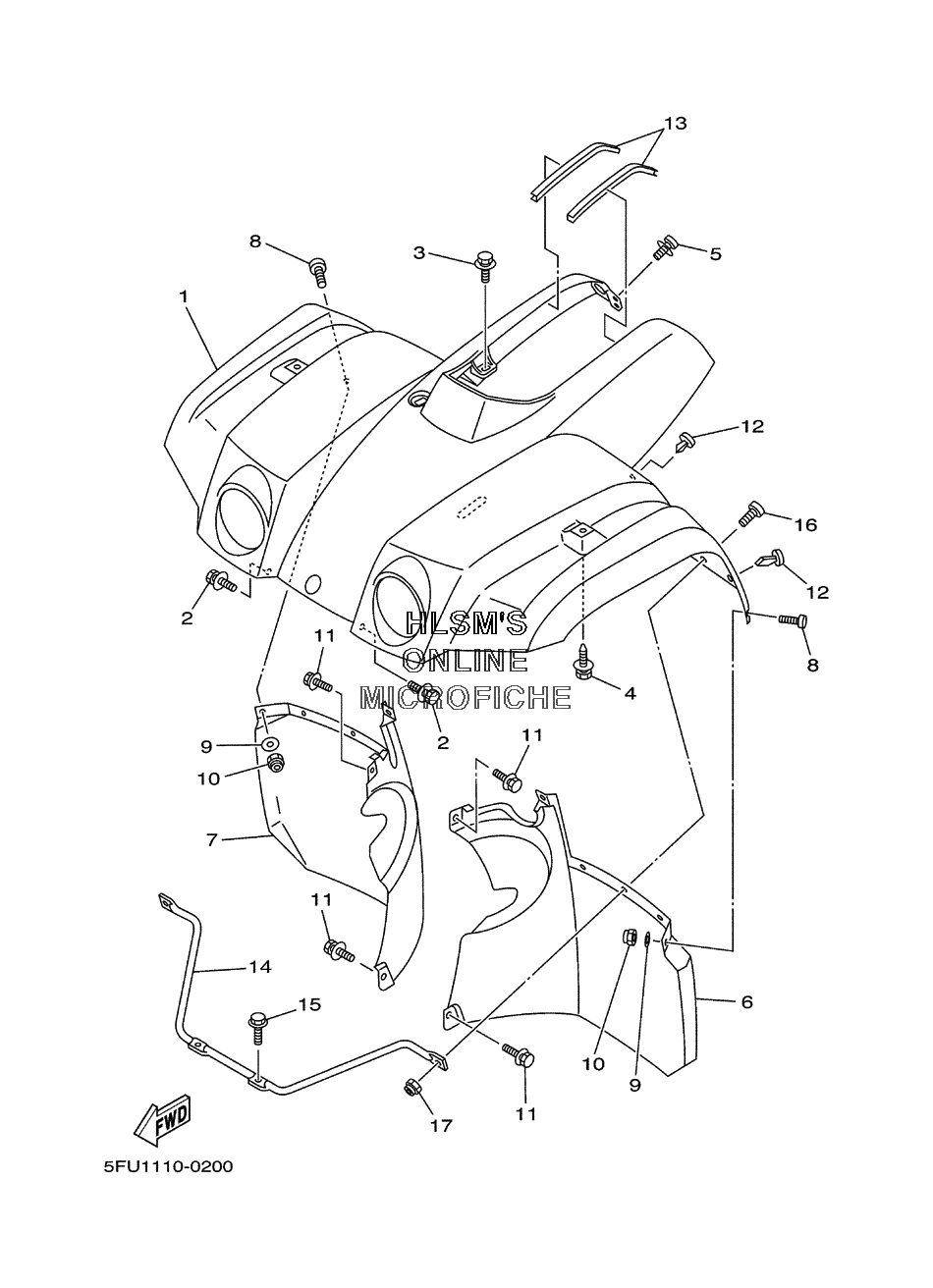

FENDER - FRONT для Yamaha BIG BEAR 4WD YFM400FWNM (5FU1) - 2000 года выпуска

№

Артикул

Название
1

5FU-F1500-00-00 FRONT FENDER ASSY (ROMANTIQUE ROUGE) (RTR)

FRONT FENDER ASSY (ROMANTIQUE ROUGE) (RTR)

116 230 ₽
1

5FU-F1500-10-00 FRONT FENDER ASSY (PASTEL DEEP GREEN) (PDG)

FRONT FENDER ASSY (PASTEL DEEP GREEN) (PDG)

99 530 ₽
1

5FU-F1500-20-00 FRONT FENDER ASSY (DARK GRAYISH YELLOW SOLID 1) (DNYS1)

FRONT FENDER ASSY (DARK GRAYISH YELLOW SOLID 1) (DNYS1)

0 ₽
2

90119-06194-00 BOLT, WITH WASHER

BOLT, WITH WASHER

440 ₽
3

90119-06018-00 BOLT, WITH WASHER

BOLT, WITH WASHER

190 ₽
4

90119-06060-00 BOLT, WITH WASHER

BOLT, WITH WASHER

180 ₽
5

90159-06059-00 SCREW, WITH WASHER

SCREW, WITH WASHER

280 ₽
6

5FU-F1521-00-00 FLAP, FRONT FENDER

FLAP, FRONT FENDER

0 ₽
7

5FU-F1561-00-00 FLAP 2

FLAP 2

0 ₽
8

90110-06836-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

150 ₽
9

92907-06200-00 WASHER

WASHER

190 ₽
10

95607-06100-00 NUT, U

NUT, U

500 ₽
11

90119-06194-00 BOLT, WITH WASHER

BOLT, WITH WASHER

440 ₽
12

90269-08813-00 RIVET

RIVET

220 ₽
13

5FU-2171L-00-00 MOLE, SIDE COVER 1

MOLE, SIDE COVER 1

0 ₽
14

5FU-F1513-00-00 STAY, FENDER 1

STAY, FENDER 1

0 ₽
15

9582P-06016-00 BOLT, FLANGE

BOLT, FLANGE

6 450 ₽
16

90110-06836-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

150 ₽
17

95607-06100-00 NUT, U

NUT, U

500 ₽
