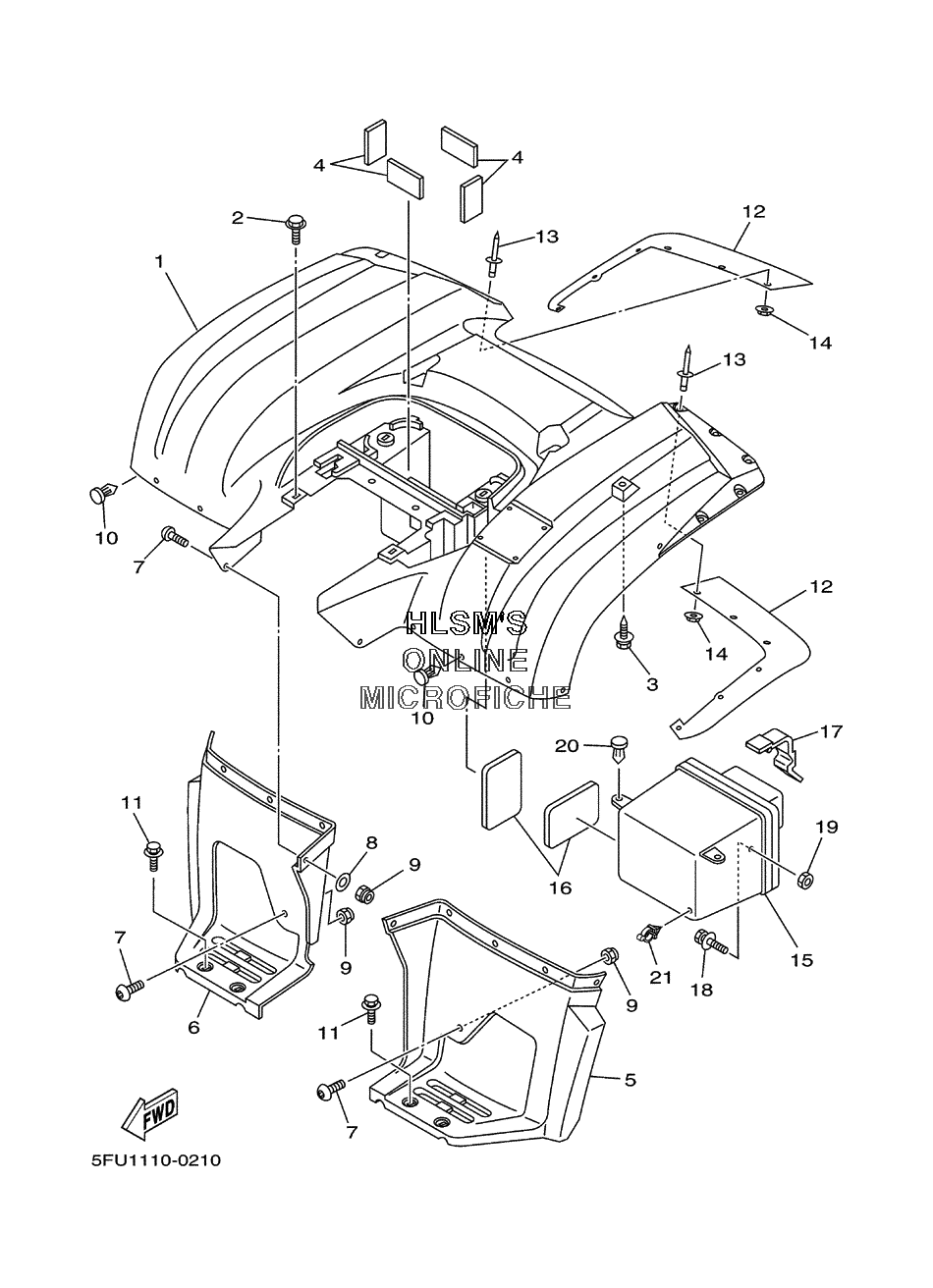

FENDER - REAR для Yamaha BIG BEAR 4WD YFM400FWNM (5FU1) - 2000 года выпуска
-
№АртикулНазвание
-
15FU-F1600-00-00 REAR FENDER ASSY (ROMANTIQUE ROUGE) (RTR)REAR FENDER ASSY (ROMANTIQUE ROUGE) (RTR)
-
15FU-F1600-10-00 REAR FENDER ASSY (PASTEL DEEP GREEN) (PDG)REAR FENDER ASSY (PASTEL DEEP GREEN) (PDG)
-
15FU-F1600-20-00 REAR FENDER ASSY (DARK GRAYISH YELLOW SOLID 1) (DNYS1)REAR FENDER ASSY (DARK GRAYISH YELLOW SOLID 1) (DNYS1)
-
290119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44XE-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
55FU-F1621-00-00 FLAPFLAP
-
65FU-F1691-00-00 FLAPFLAP
-
790110-06836-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
892907-06200-00 WASHERWASHER
-
995607-06100-00 NUT, UNUT, U
-
1090269-08813-00 RIVETRIVET
-
1190119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
125FU-F162H-00-00 FLAP 3FLAP 3
-
1390267-60840-00 RIVET, BLINDRIVET, BLIND
-
1490201-068M4-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
154XE-F160A-00-00 BOX COMPBOX COMP
-
165FU-21652-00-00 PROTECTORPROTECTOR
-
1759V-21646-00-00 BANDBAND
-
1890119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1995707-06600-00 NUT, FLANGENUT, FLANGE
-
2090269-08813-00 RIVETRIVET
-
2190464-10833-00 CLAMPCLAMP
