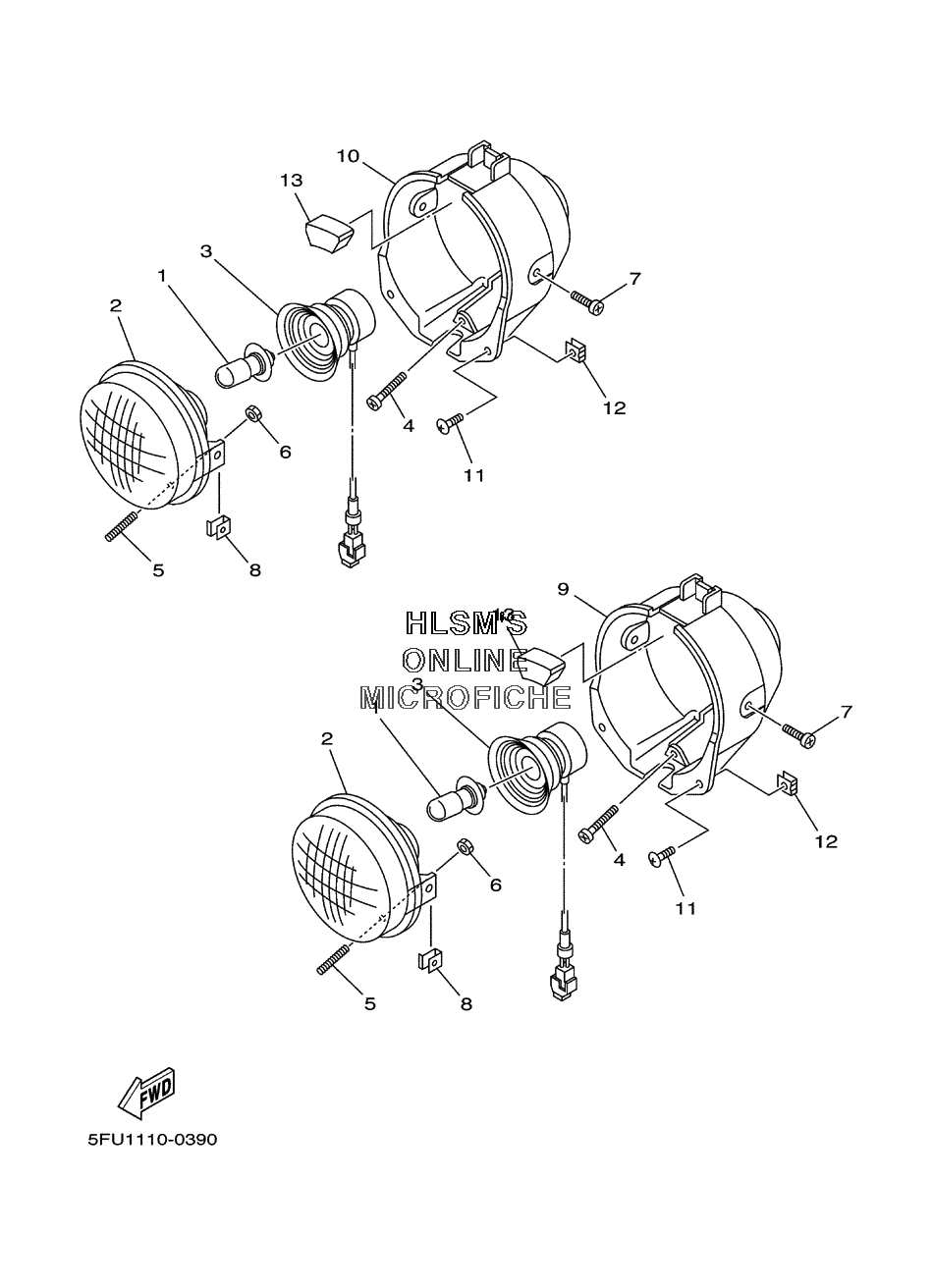

HEADLIGHT для Yamaha BIG BEAR 4WD YFM400FWNM (5FU1) - 2000 года выпуска
-
№АртикулНазвание
-
14KB-84314-00-00 BULB (12V30/30W)BULB (12V30/30W)
-
24WV-84320-00-00 LENS ASSYLENS ASSY
-
35EH-84340-00-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
42GU-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
798507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
890183-05013-00 NUT, SPRINGNUT, SPRING
-
95FU-H4111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
105FU-H4311-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
1197707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
134XE-F1717-00-00 DAMPERDAMPER
