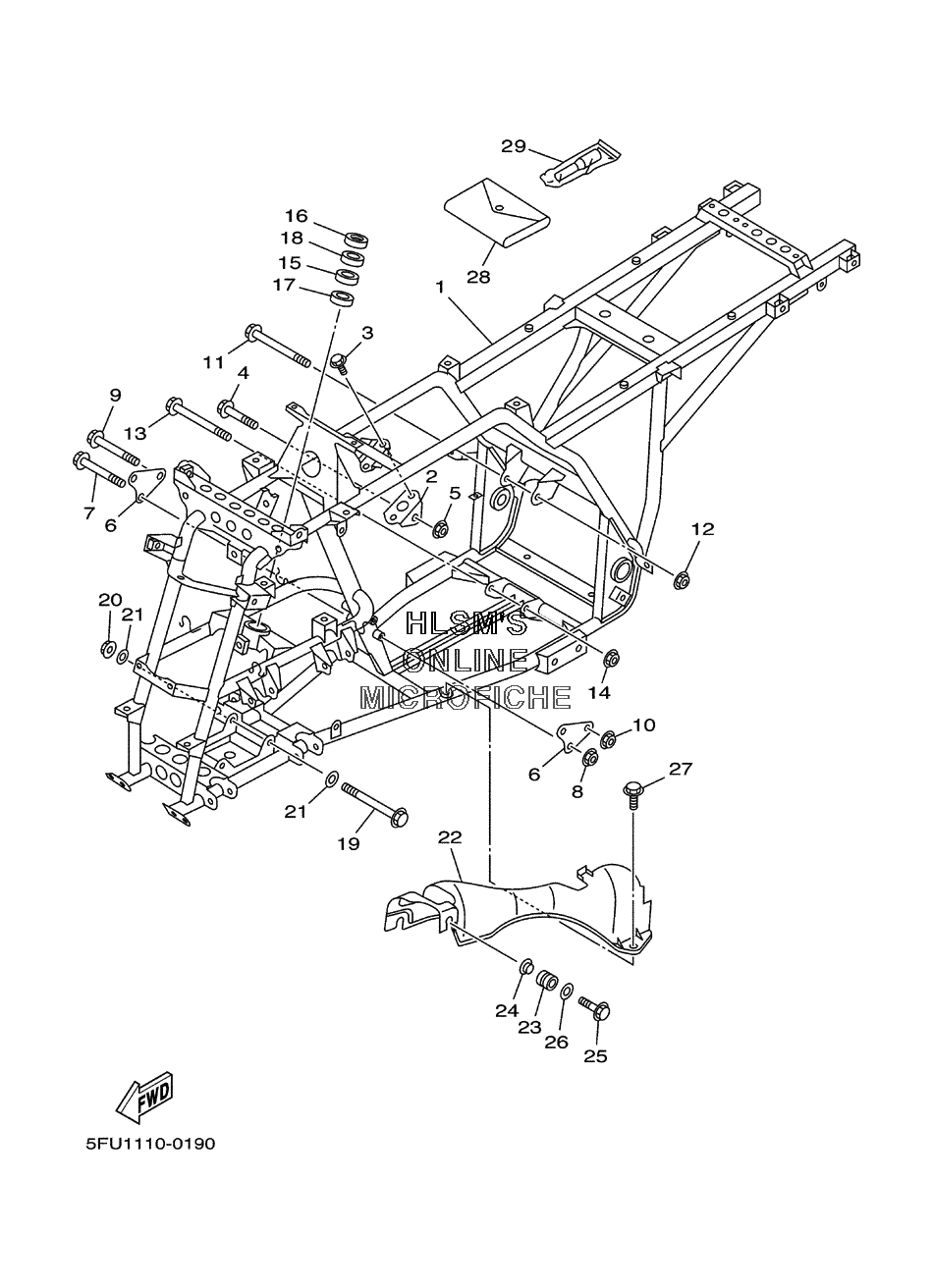

FRAME для Yamaha BIG BEAR 4WD YFM400FWNM (5FU1) - 2000 года выпуска
-
№АртикулНазвание
-
15FU-F1110-00-00 FRAME COMPFRAME COMP
-
25FU-F1315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
39581P-08012-00 BOLT, FLANGEBOLT, FLANGE
-
49581P-08055-00 BOLT, FLANGEBOLT, FLANGE
-
59560P-08200-00 NUTNUT
-
65FU-F1316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
79581P-08085-00 BOLT, FLANGEBOLT, FLANGE
-
89560P-08200-00 NUTNUT
-
990105-108A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190105-108A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390105-108A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1593306-203YB-00 BEARINGBEARING
-
1693102-25081-00 OIL SEALOIL SEAL
-
1793102-25099-00 OIL SEALOIL SEAL
-
182GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1990105-108A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190201-108R2-00 WASHER, PLATEWASHER, PLATE
-
225FU-F147J-00-00 COVER, SHAFT 1COVER, SHAFT 1
-
2390480-15058-00 GROMMETGROMMET
-
2490387-06024-00 COLLARCOLLAR
-
2590105-068B0-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2690201-06380-00 WASHER, PLATEWASHER, PLATE
-
2790119-06194-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
282XK-28100-00-00 TOOL KITTOOL KIT
-
291NV-2811A-00-00 GAUGE, AIRGAUGE, AIR
