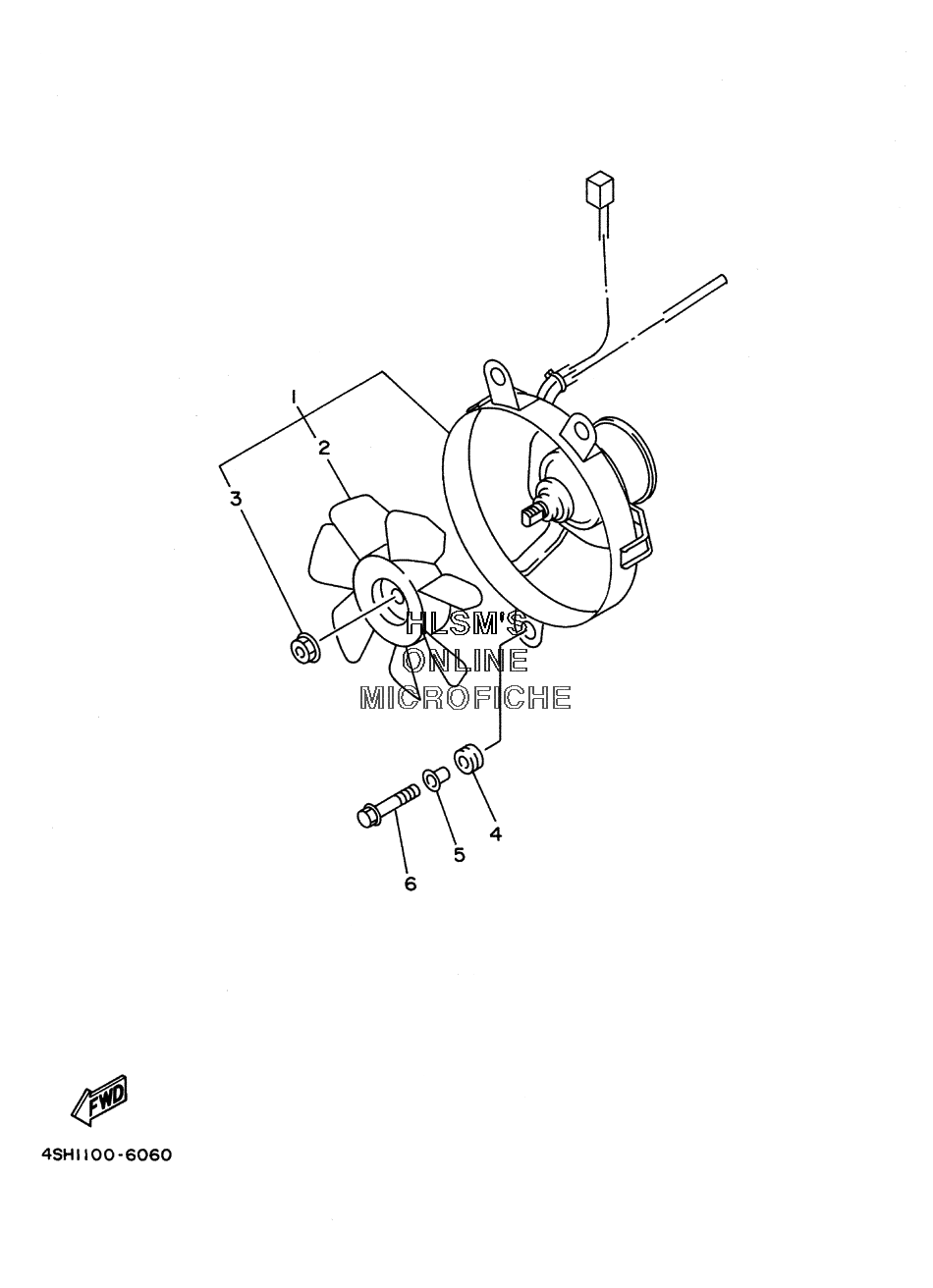

FAN ASSY для Yamaha GRIZZLY HUNTING YFM600HM (5GT9) - 2000 года выпуска
-
№АртикулНазвание
-
14SH-12405-00-00 BLOWER ASSEMBLYBLOWER ASSEMBLY
-
24SH-12611-00-00 FANFAN
-
333M-12671-00-00 NUT 1NUT 1
-
490480-14229-00 GROMMETGROMMET
-
590387-063E6-00 COLLARCOLLAR
-
695807-06025-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- • FAN ASSY
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR - SWITCHES/LEVERS
- HANDLEBAR W/ THROTTLE AND CABLES
- HEADLIGHT
- MIDDLE DRIVE GEAR
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SPEEDOMETER ASSY.
- STAND - FOOTREST
- STARTER - RECOIL
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
