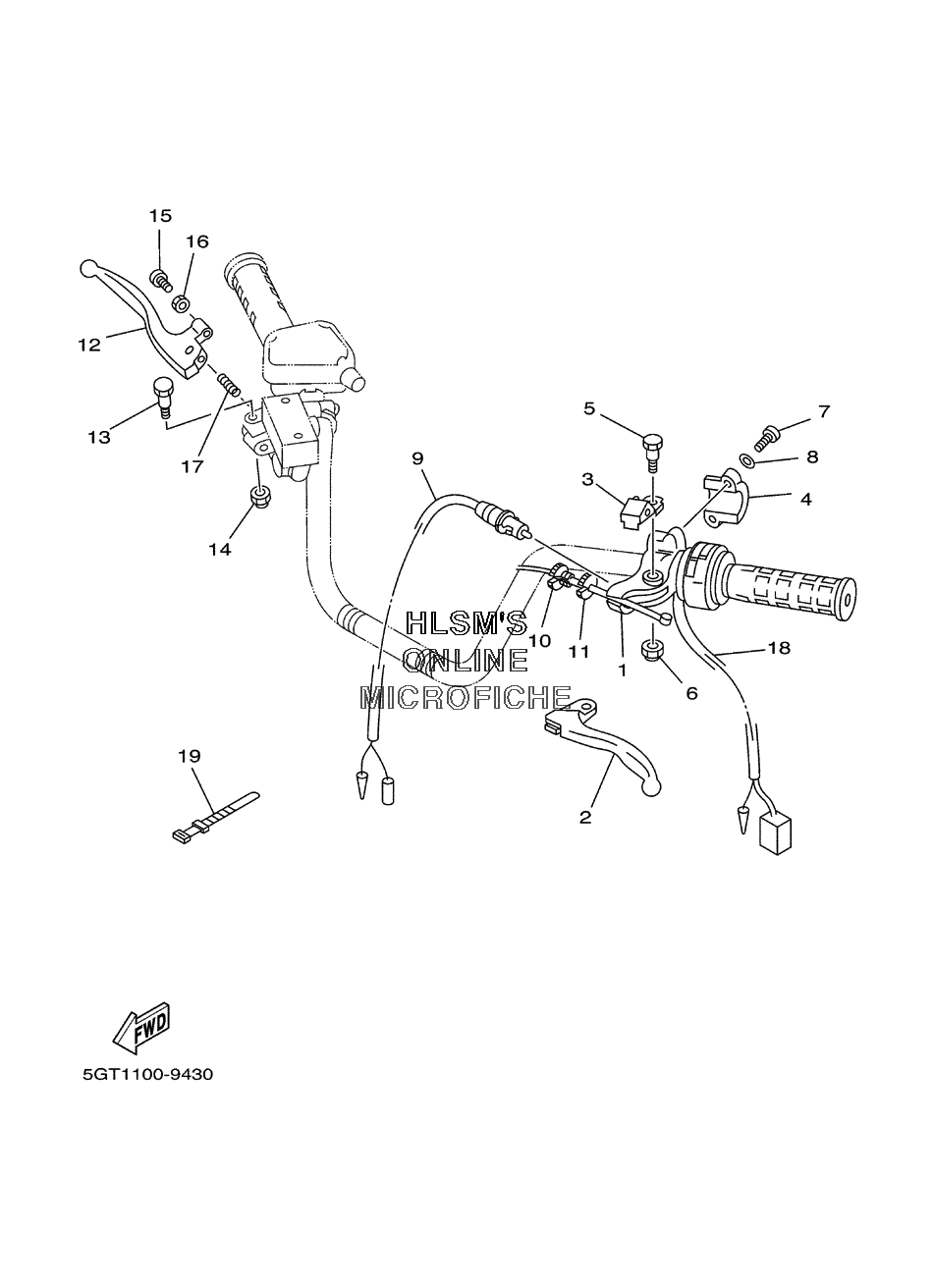

HANDLEBAR - SWITCHES/LEVERS для Yamaha GRIZZLY HUNTING YFM600HM (5GT9) - 2000 года выпуска
-
№АртикулНазвание
-
11YW-82911-01-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
23FA-83912-00-00 LEVER 1LEVER 1
-
31YW-83965-00-00 LEVER, LOCKLEVER, LOCK
-
42XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
590109-06576-00 BOLTBOLT
-
695607-06100-00 NUT, UNUT, U
-
798507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
91YW-83980-00-00 FRONT STOP SWITCH ASSEMBLYFRONT STOP SWITCH ASSEMBLY
-
1090123-08046-00 BOLTBOLT
-
1190179-08148-00 NUTNUT
-
121RX-83922-01-00 LEVER 2LEVER 2
-
1390109-06577-00 BOLTBOLT
-
1495607-06100-00 NUT, UNUT, U
-
1590149-06131-00 SCREWSCREW
-
1690170-06010-00 NUTNUT
-
1790501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
184GB-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
19437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
