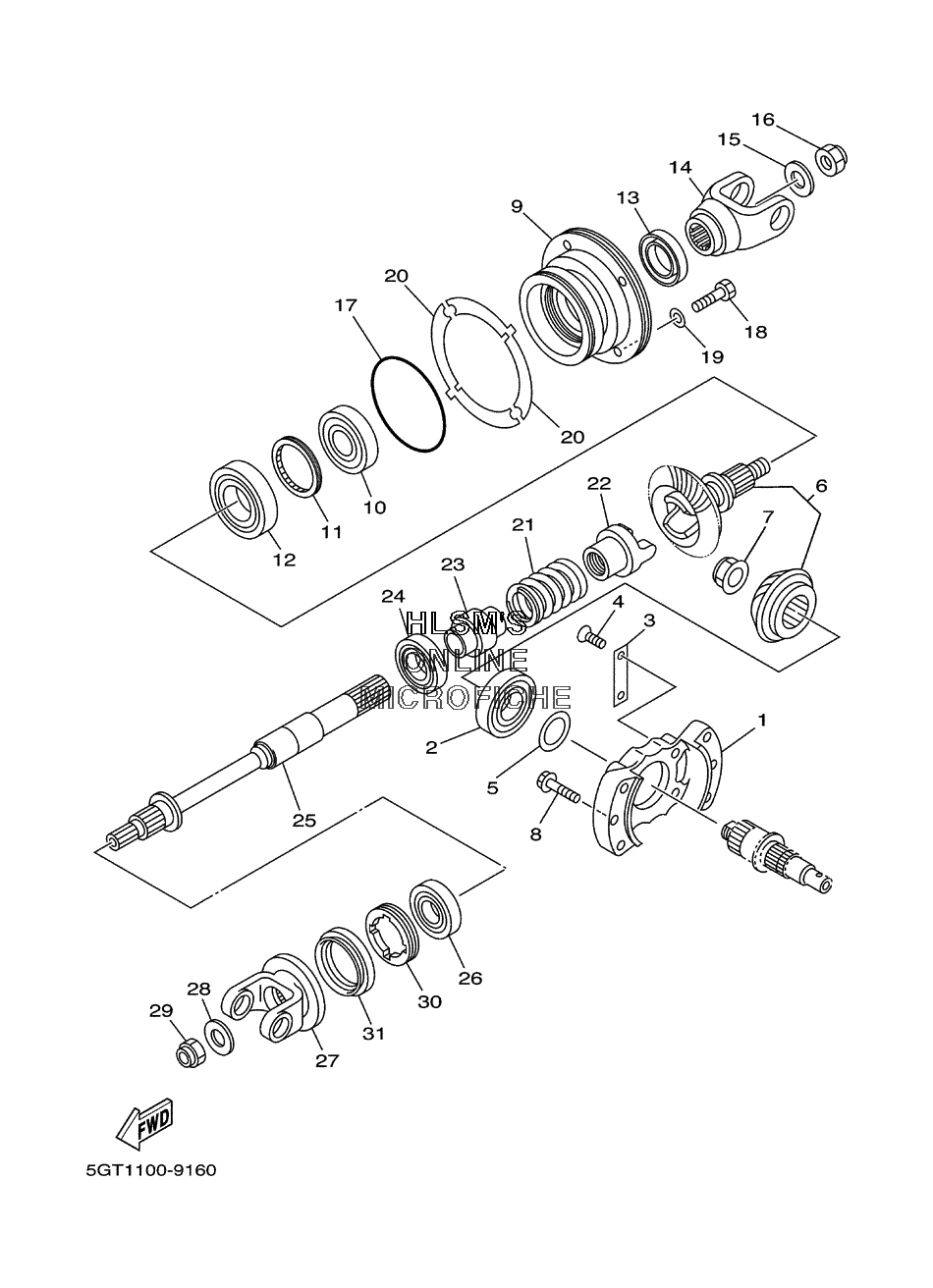

MIDDLE DRIVE GEAR для Yamaha GRIZZLY HUNTING YFM600HM (5GT9) - 2000 года выпуска
-
№АртикулНазвание
-
14WV-17521-01-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-20622-00 BEARINGBEARING
-
311H-15383-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08152-00 SCREWSCREW
-
552G-17531-01-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
552G-17531-11-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
552G-17531-21-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
552G-17531-31-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
552G-17531-41-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
552G-17531-51-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
65GT-Y1754-00-00 MIDDLE GEAR COMPMIDDLE GEAR COMP
-
790179-22526-00 NUTNUT
-
895817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
95GT-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-37206-00 BEARINGBEARING
-
1190179-60699-00 NUTNUT
-
1293306-20715-00 BEARINGBEARING
-
1393101-30084-00 OIL SEALOIL SEAL
-
145GT-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1590201-12191-00 WASHER, PLATEWASHER, PLATE
-
1690179-12325-00 NUTNUT
-
1793210-78544-00 O-RINGO-RING
-
1897027-08030-00 BOLTBOLT
-
1992907-08600-00 WASHER, PLATEWASHER, PLATE
-
204KB-17531-00-00 SHIM, PINION (0.10T) (OPT)SHIM, PINION (0.10T) (OPT)
-
204KB-17531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
204KB-17531-20-00 SHIM, PINION (0.20T) (OPT)SHIM, PINION (0.20T) (OPT)
-
204KB-17531-30-00 SHIM, PINION (0.30T) (OPT)SHIM, PINION (0.30T) (OPT)
-
204KB-17531-40-00 SHIM, PINION (0.40T) (OPT)SHIM, PINION (0.40T) (OPT)
-
204KB-17531-50-00 SHIM, PINION (0.50T) (OPT)SHIM, PINION (0.50T) (OPT)
-
204KB-17531-60-00 SHIM, PINION (0.60T) (OPT)SHIM, PINION (0.60T) (OPT)
-
2190501-650L5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
224VR-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
234KB-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
2493306-00612-00 BEARINGBEARING
-
255GT-1755A-00-00 MIDDLE DRIVEN SHAFT ASSEMBLYMIDDLE DRIVEN SHAFT ASSEMBLY
-
2693306-20517-00 BEARING (B6205)BEARING (B6205)
-
275GT-17576-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
2890201-14633-00 WASHER, PLATEWASHER, PLATE
-
2990185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3090179-55660-00 NUTNUT
-
3193102-44454-00 OIL SEALOIL SEAL
