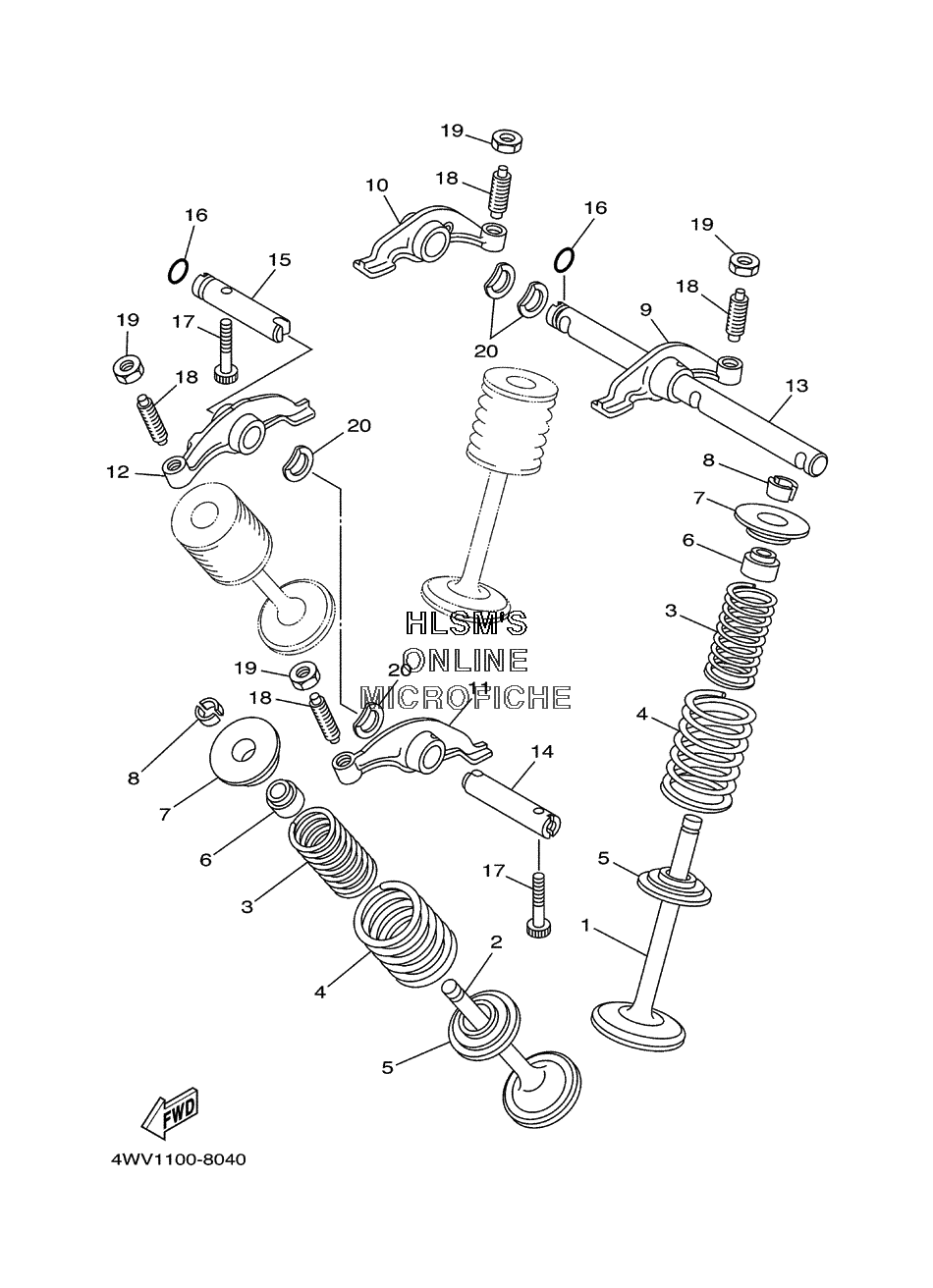

VALVE ASSY для Yamaha GRIZZLY HUNTING YFM600HM (5GT9) - 2000 года выпуска
-
№АртикулНазвание
-
14WV-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
24WV-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
35Y1-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
45Y1-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
54H7-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
61J7-12119-01-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
72F3-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
81J7-12118-00-00 COTTER, VALVECOTTER, VALVE
-
934K-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
1034K-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
114WV-12162-00-00 ARM, VALVE ROCKER 3ARM, VALVE ROCKER 3
-
1234K-12163-00-00 ARM, VALVE ROCKER 4ARM, VALVE ROCKER 4
-
132NX-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
142NX-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
152NX-12166-00-00 SHAFT, ROCKER 3SHAFT, ROCKER 3
-
1693210-08521-00 O-RINGO-RING
-
1790109-063E8-00 BOLTBOLT
-
182NX-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1990170-06128-00 NUTNUT
-
2090206-12075-00 WASHER, WAVEWASHER, WAVE
