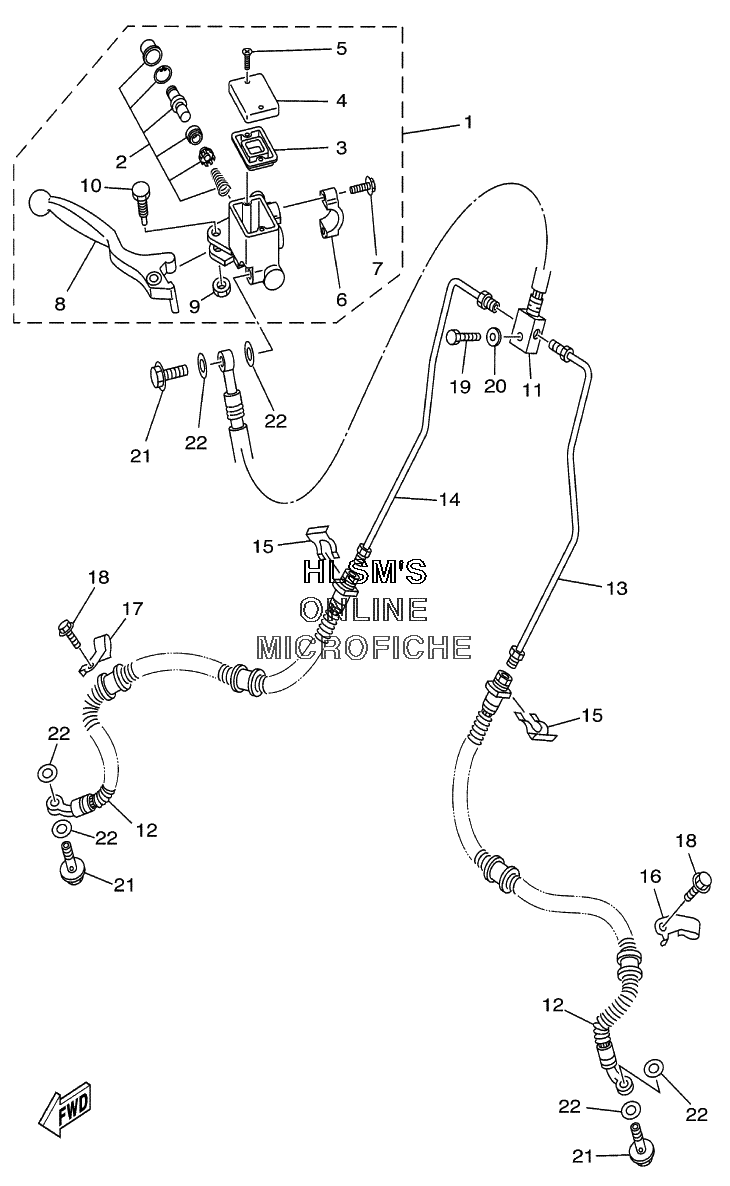

BRAKE - FRONT MASTER CYLINDER для Yamaha BIG BEAR 2WD YFM400NN (5GW4) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
24HTW0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
355U-25854-00-00 ......DIAPHRAGM, RESERVOIR......DIAPHRAGM, RESERVOIR
-
48CR-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ......SCREW, FLAT HEAD......SCREW, FLAT HEAD
-
65GH-25867-00-00 ......BRACKET, MASTER CYLINDER......BRACKET, MASTER CYLINDER
-
75EB-26332-00-00 ......BOLT......BOLT
-
85GH-83922-00-00 ...LEVER...LEVER
-
995606-06100-00 ......NUT, U......NUT, U
-
105GH-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
115FU-F5872-00-00 HOSE, BRAKEHOSE, BRAKE
-
125FU-F5873-00-00 HOSE, BRAKEHOSE, BRAKE
-
135FU-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
145FU-F5882-00-00 PIPE, BRAKEPIPE, BRAKE
-
152GU-25866-00-00 CIRCLIPCIRCLIP
-
165FU-F5875-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
175FU-F5876-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
189582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1997027-08030-00 BOLT,HEXAGONBOLT,HEXAGON
-
2092907-08600-00 WASHERWASHER
-
2190401-10159-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
