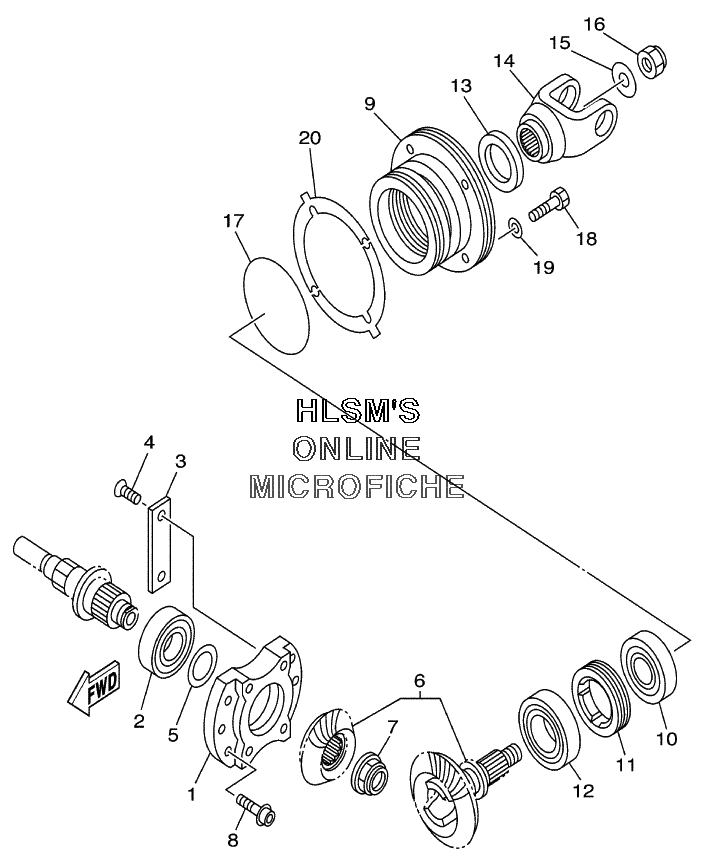

MIDDLE DRIVE GEAR для Yamaha BIG BEAR 2WD YFM400NN (5GW4) - 2001 года выпуска
-
№АртикулНазвание
-
14KB-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-20636-00 BEARINGBEARING
-
311H-15383-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08152-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
552G-17531-01-00 SHIM, PINION (0.1THICKNESS) (OPT)SHIM, PINION (0.1THICKNESS) (OPT)
-
552G-17531-11-00 SHIM, PINION (0.15THICKNESS) (OPT)SHIM, PINION (0.15THICKNESS) (OPT)
-
552G-17531-21-00 SHIM, PINION (0.2THICKNESS) (OPT)SHIM, PINION (0.2THICKNESS) (OPT)
-
552G-17531-31-00 SHIM, PINION (0.3THICKNESS) (OPT)SHIM, PINION (0.3THICKNESS) (OPT)
-
552G-17531-51-00 SHIM, PINION (0.5THICKNESS) (OPT)SHIM, PINION (0.5THICKNESS) (OPT)
-
552G-17531-41-00 SHIM, PINION (0.4THICKNESS) (OPT)SHIM, PINION (0.4THICKNESS) (OPT)
-
64KB-Y1754-00-00 MIDDLE GEAR COMPMIDDLE GEAR COMP
-
790179-22526-00 NUTNUT
-
890109-082A1-00 BOLTBOLT
-
94KB-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-30560-00 BEARINGBEARING
-
1190179-65305-00 ...NUT...NUT
-
1293306-20712-00 BEARINGBEARING
-
1393101-35097-00 OIL SEALOIL SEAL
-
142HR-17556-01-00 YOKE, JOINTYOKE, JOINT
-
1590201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
1690185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1793210-78544-00 O-RINGO-RING
-
1897027-08030-00 BOLTBOLT
-
1992907-08600-00 WASHERWASHER
-
204KB-17531-00-00 SHIM, PINION (0.10THICKNESS) (OPT)SHIM, PINION (0.10THICKNESS) (OPT)
-
204KB-17531-10-00 SHIM, PINION (0.15THICKNESS) (OPT)SHIM, PINION (0.15THICKNESS) (OPT)
-
204KB-17531-20-00 SHIM, PINION (0.20THICKNESS) (OPT)SHIM, PINION (0.20THICKNESS) (OPT)
-
204KB-17531-30-00 SHIM, PINION (0.30THICKNESS) (OPT)SHIM, PINION (0.30THICKNESS) (OPT)
-
204KB-17531-40-00 SHIM, PINION (0.40THICKNESS) (OPT)SHIM, PINION (0.40THICKNESS) (OPT)
-
204KB-17531-50-00 SHIM, PINION (0.50THICKNESS) (OPT)SHIM, PINION (0.50THICKNESS) (OPT)
-
204KB-17531-60-00 SHIM, PINION (0.60THICKNESS) (OPT)SHIM, PINION (0.60THICKNESS) (OPT)
