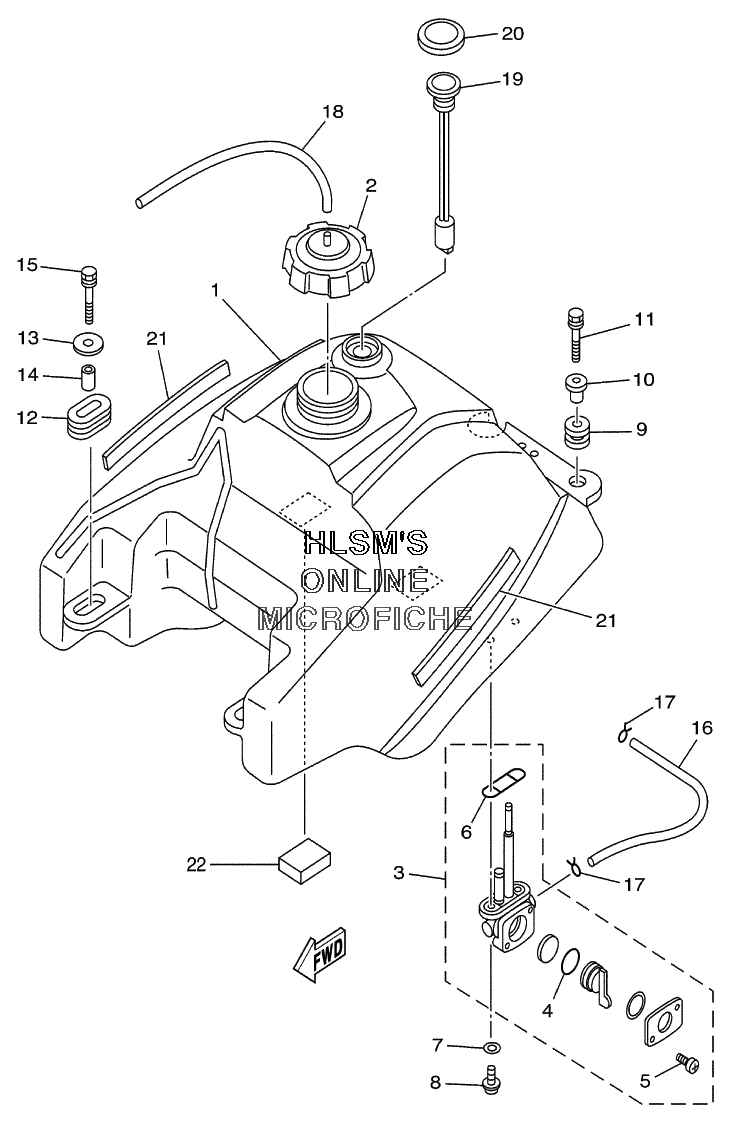

FUEL TANK для Yamaha BIG BEAR 2WD YFM400NN (5GW4) - 2001 года выпуска
-
№АртикулНазвание
-
15FU-F4110-00-00 FUEL TANK COMPFUEL TANK COMP
-
25MV-24610-00-00 CAP ASSYCAP ASSY
-
33JN-24500-00-00 FUEL COCK ASSYFUEL COCK ASSY
-
43AJ-24534-00-00 ......SEAL, COCK......SEAL, COCK
-
597801-03008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
64X8-24512-00-00 ...GASKET...GASKET
-
790202-05193-00 WASHER, PLATEWASHER, PLATE
-
890149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
990480-18290-00 GROMMETGROMMET
-
1090387-066J1-00 COLLARCOLLAR
-
1190119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290480-01400-00 GROMMETGROMMET
-
1390201-068P9-00 WASHER, PLATEWASHER, PLATE
-
1490387-07598-00 COLLARCOLLAR
-
1590119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690445-118C6-00 HOSEHOSE
-
1790467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
1890445-088C5-00 HOSEHOSE
-
194SH-24260-00-00 FUEL METER ASSYFUEL METER ASSY
-
204SH-24261-00-00 HOUSING, FUEL METERHOUSING, FUEL METER
-
215FU-F4181-00-00 DAMPER, LOCATINGDAMPER, LOCATING
-
225FU-F414J-00-00 DAMPER, PLATEDAMPER, PLATE
