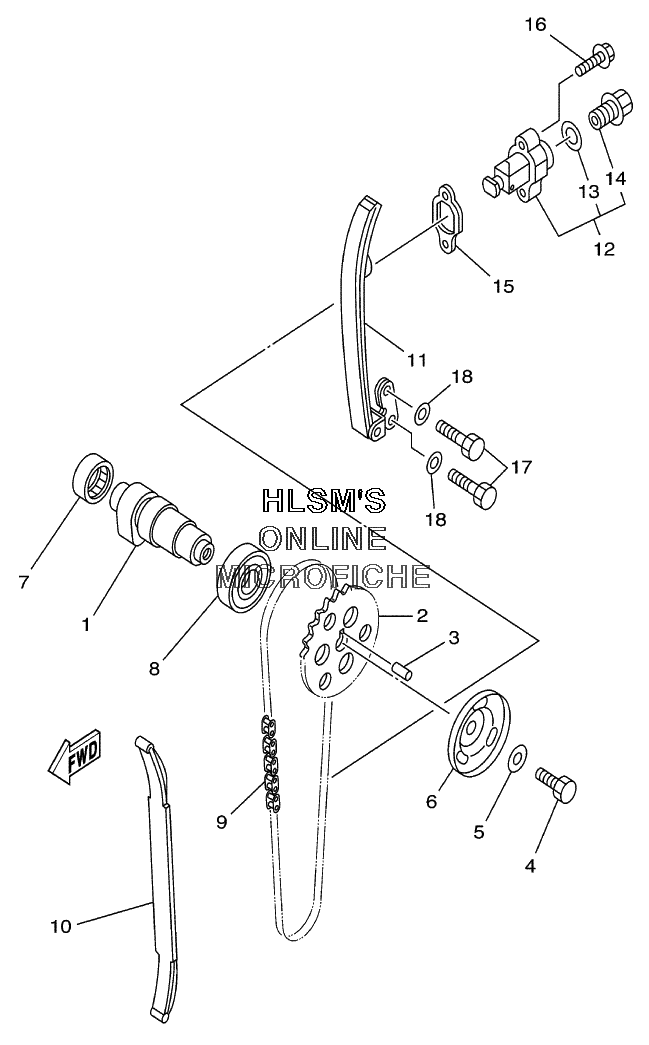

CAMSHAFT W/ CHAIN для Yamaha BIG BEAR 2WD YFM400NN (5GW4) - 2001 года выпуска
-
№АртикулНазвание
-
11UY-12170-00-00 CAMSHAFT ASSYCAMSHAFT ASSY
-
23HN-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
393604-10011-00 PIN, DOWELPIN, DOWEL
-
490101-10303-00 BOLTBOLT
-
590201-10591-00 WASHER, PLATEWASHER, PLATE
-
64KB-11145-00-00 PLATE, BREATHERPLATE, BREATHER
-
793315-32516-00 BEARINGBEARING
-
893306-00515-00 BEARINGBEARING
-
994500-02092-00 CHAIN, CAMSHAFT (BF05M 92L)CHAIN, CAMSHAFT (BF05M 92L)
-
102JN-12231-00-00 GUIDE, STOPPERGUIDE, STOPPER
-
114KB-12241-00-00 GUIDE, STOPPERGUIDE, STOPPER
-
1231G-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1331G-12214-00-00 ...GASKET...GASKET
-
1431G-12222-00-00 ...PLUG...PLUG
-
153GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1695027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1797027-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1892907-06600-00 WASHER, PLATEWASHER, PLATE
