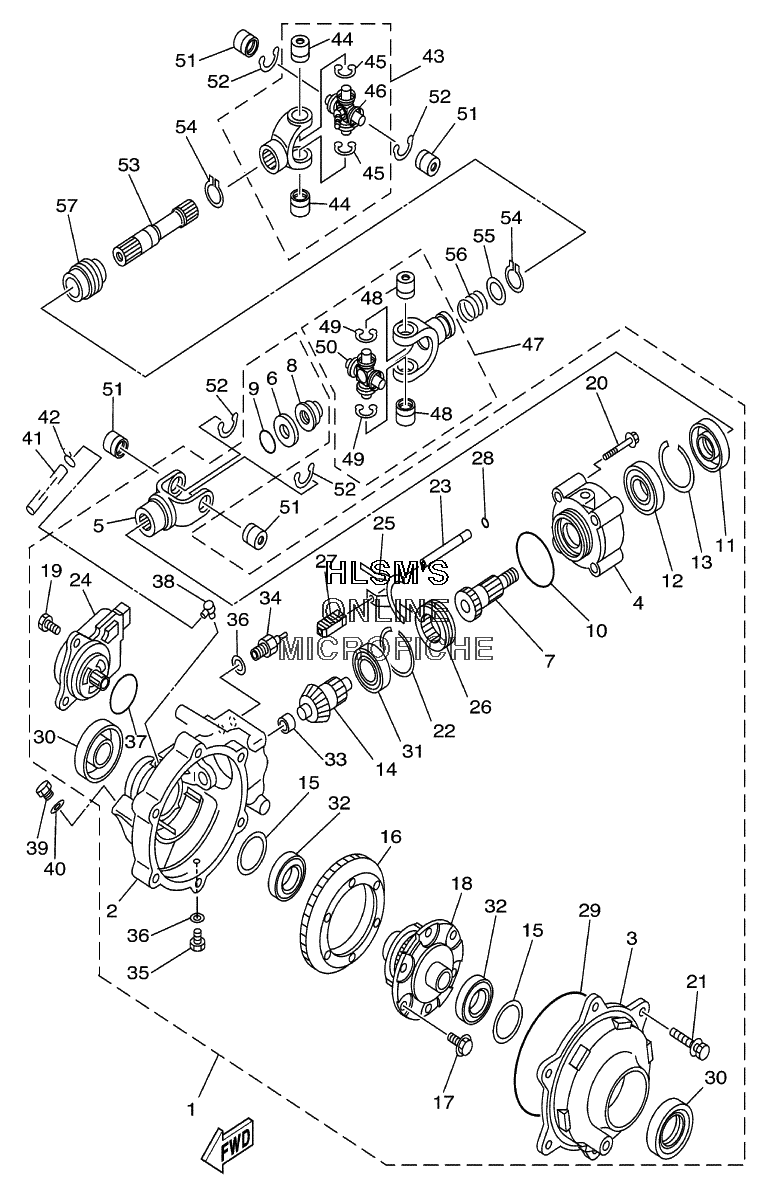

DIFFERENTIAL - FRONT W/ DRIVE SHAFT для Yamaha GRIZZLY HUNTER EDITION YFM600FWAHN (5GTK) - 2001 года выпуска
-
№АртикулНазвание
-
15GT-46160-00-00 FRONT AXLE GEAR CASE COMPFRONT AXLE GEAR CASE COMP
-
24WV-46161-00-00 ...HOUSING, SHAFT DRIVE...HOUSING, SHAFT DRIVE
-
34WV-46162-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
44WV-46144-00-00 ...HOUSING, PINION BEARING...HOUSING, PINION BEARING
-
55GT-46146-00-00 ...YOKE, JOINT...YOKE, JOINT
-
690201-14633-00 ......WASHER, PLATE......WASHER, PLATE
-
75GT-46121-00-00 ...GEAR, DRIVE PINION...GEAR, DRIVE PINION
-
84WV-46145-00-00 ......NUT......NUT
-
993210-14359-00 ......O-RING......O-RING
-
1093210-69628-00 ...O-RING...O-RING
-
114WV-46163-00-00 ...SEAL,OIL...SEAL,OIL
-
124WV-46164-00-00 ...BEARING...BEARING
-
134WV-46142-00-00 ...RING,HOLE SNAP...RING,HOLE SNAP
-
145GT-46141-00-00 ...PINION, DRIVE...PINION, DRIVE
-
154WV-46119-00-00 ......SHIM, THRUST (0.1THICKNESS) (OPT)......SHIM, THRUST (0.1THICKNESS) (OPT)
-
154WV-46119-10-00 ......SHIM, THRUST (0.2THICKNESS) (OPT)......SHIM, THRUST (0.2THICKNESS) (OPT)
-
154WV-46119-20-00 ......SHIM, THRUST (0.3THICKNESS) (OPT)......SHIM, THRUST (0.3THICKNESS) (OPT)
-
154WV-46119-30-00 ......SHIM, THRUST (0.4THICKNESS) (OPT)......SHIM, THRUST (0.4THICKNESS) (OPT)
-
154WV-46119-40-00 ......SHIM, THRUST (0.5THICKNESS) (OPT)......SHIM, THRUST (0.5THICKNESS) (OPT)
-
154WV-46119-50-00 ......SHIM, THRUST (1.0THICKNESS) (OPT)......SHIM, THRUST (1.0THICKNESS) (OPT)
-
154WV-46119-60-00 ......SHIM, THRUST (1.5THICKNESS) (OPT)......SHIM, THRUST (1.5THICKNESS) (OPT)
-
154WV-46119-70-00 ......SHIM, THRUST (2.0THICKNESS) (OPT)......SHIM, THRUST (2.0THICKNESS) (OPT)
-
154WV-46119-80-00 ......SHIM, THRUST (2.5THICKNESS) (OPT)......SHIM, THRUST (2.5THICKNESS) (OPT)
-
165GT-46131-00-00 ...GEAR, RING...GEAR, RING
-
174WV-46155-00-00 ...BOLT...BOLT
-
185GT-46470-00-00 ...LIMITED SLIP DIFFASSY...LIMITED SLIP DIFFASSY
-
1991317-08020-00 ...BOLT...BOLT
-
204WV-46158-00-00 ...BOLT...BOLT
-
214WV-46159-00-00 ......BOLT......BOLT
-
224WV-46143-00-00 ......RING,HOLE SNAP......RING,HOLE SNAP
-
234WV-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
244WV-4616A-00-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
254WV-18514-00-00 ...FORK, SHIFT...FORK, SHIFT
-
264WV-46441-00-00 ...CLUTCH,DRIVEN...CLUTCH,DRIVEN
-
274WV-18319-00-00 ...SHAFT...SHAFT
-
284WV-46134-00-00 ...O-RING...O-RING
-
294WV-46135-00-00 ...O-RING...O-RING
-
3093102-35380-00 ...OIL SEAL...OIL SEAL
-
314WV-46165-00-00 ...BEARING...BEARING
-
324WV-46166-00-00 ...BEARING...BEARING
-
334WV-46167-00-00 ......BEARING......BEARING
-
343GD-82540-11-00 ...REVERSE SWITCH...REVERSE SWITCH
-
354WV-46168-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
364WV-46132-00-00 ...GASKET 1...GASKET 1
-
3793210-50768-00 ...O-RING...O-RING
-
382N4-15371-00-00 ......BREATHER......BREATHER
-
3990340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
40214-11198-01-00 ...GASKET...GASKET
-
4190445-072J3-00 HOSE (L890)HOSE (L890)
-
4290467-07029-00 CLIPCLIP
-
435GT-46107-00-00 CROSS JOINT COMPCROSS JOINT COMP
-
4493399-99948-00 ...BEARING...BEARING
-
4593440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
465GT-46187-00-00 ......SPIDER......SPIDER
-
475GT-46108-00-00 CROSS JOINT COMPCROSS JOINT COMP
-
4893399-99948-00 ...BEARING...BEARING
-
4993440-20088-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
505GT-46187-00-00 ......SPIDER......SPIDER
-
5193399-99948-00 BEARINGBEARING
-
5293440-20088-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
535GT-46173-00-00 SHAFT, DRIVESHAFT, DRIVE
-
5499009-19400-00 CIRCLIPCIRCLIP
-
5590201-20266-00 WASHER, PLATE (1.0THICKNESS)WASHER, PLATE (1.0THICKNESS)
-
5690501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
575GT-46136-00-00 SEALSEAL
