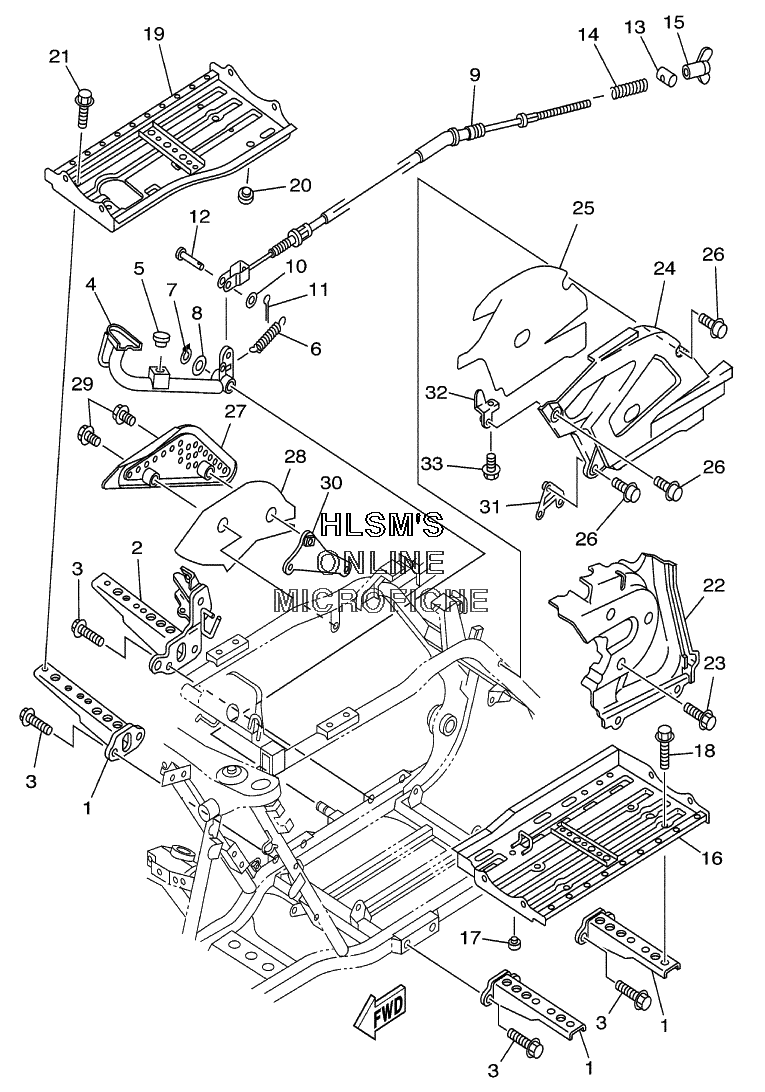

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY HUNTER EDITION YFM600FWAHN (5GTK) - 2001 года выпуска
-
№АртикулНазвание
-
15GT-27411-00-00 FOOTRESTFOOTREST
-
25GT-27421-00-00 FOOTRESTFOOTREST
-
395817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
45GT-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
5128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
690506-18527-00 SPRING, TENSIONSPRING, TENSION
-
793430-12008-00 CIRCLIPCIRCLIP
-
890201-15797-00 WASHER, PLATEWASHER, PLATE
-
95GT-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
1092907-06200-00 WASHERWASHER
-
1191401-20012-00 PIN, COTTERPIN, COTTER
-
1290240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1390249-12008-00 PINPIN
-
1490501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1520E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
165GT-27481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
17128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1890119-06108-00 BOLT, HEXAGONBOLT, HEXAGON
-
195GT-27488-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
20128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
2190119-06108-00 BOLT, HEXAGONBOLT, HEXAGON
-
224WV-27453-00-00 COVERCOVER
-
2395807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
244WV-27486-00-00 COVERCOVER
-
254WV-27496-00-00 MOLEMOLE
-
2690159-06033-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
274WV-27463-10-00 COVERCOVER
-
284WV-27497-00-00 MOLEMOLE
-
2990119-06018-00 BOLT, HEXAGONBOLT, HEXAGON
-
304WV-15771-00-00 STAYSTAY
-
314WV-15773-00-00 STAYSTAY
-
325GT-27412-00-00 BRACKET, FOOTRESTBRACKET, FOOTREST
-
3395807-06016-00 BOLT, FLANGEBOLT, FLANGE
