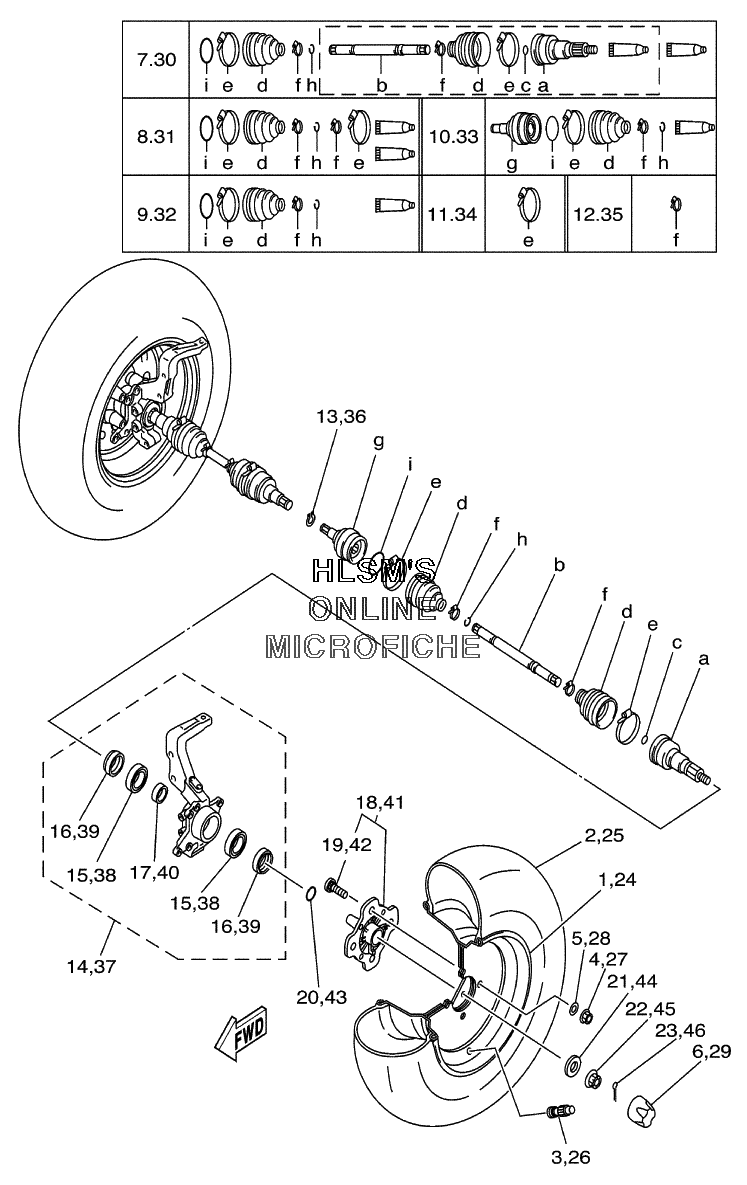

WHEEL - FRONT W/ CV JOINT для Yamaha GRIZZLY HUNTER EDITION YFM600FWAHN (5GTK) - 2001 года выпуска
-
№АртикулНазвание
-
15GT-25180-00-00 WHEEL COMP (GRIZZLY) (MODEL 5GTE)WHEEL COMP (GRIZZLY) (MODEL 5GTE)
-
15GT-25180-20-00 WHEEL COMP (HUNTER) (MODEL 5GTK)WHEEL COMP (HUNTER) (MODEL 5GTK)
-
294108-1215F-00 TIRE (AT25 X 8 - 12)TIRE (AT25 X 8 - 12)
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
592907-10200-00 WASHERWASHER
-
65GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
75GT-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
85GT-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
95GT-2510H-00-00 BOOT SET (DOUBLE OFF SET JOINT)BOOT SET (DOUBLE OFF SET JOINT)
-
105GT-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
114WV-2511G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
124WV-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
1393450-22119-00 CIRCLIPCIRCLIP
-
145GT-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1593306-00615-00 ......BEARING......BEARING
-
1693102-38417-00 ...OIL SEAL...OIL SEAL
-
1790560-30325-00 ......SPACER......SPACER
-
185GT-25111-00-00 HUB, FRONTHUB, FRONT
-
1990114-10011-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2093210-27666-00 O-RINGO-RING
-
2190201-162L6-00 WASHER, PLATEWASHER, PLATE
-
2290171-16048-00 NUT, CASTLENUT, CASTLE
-
2391401-30030-00 PIN, COTTERPIN, COTTER
-
245GT-25180-00-00 WHEEL COMP (GRIZZLY) (MODEL 5GTE)WHEEL COMP (GRIZZLY) (MODEL 5GTE)
-
245GT-25180-20-00 WHEEL COMP (HUNTER) (MODEL 5GTK)WHEEL COMP (HUNTER) (MODEL 5GTK)
-
2594108-1215F-00 TIRE (AT25 X 8 - 12)TIRE (AT25 X 8 - 12)
-
2693900-00022-00 VALVE, RIMVALVE, RIM
-
2795707-10500-00 NUT, FLANGENUT, FLANGE
-
2892907-10200-00 WASHERWASHER
-
295GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
305GT-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
315GT-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
325GT-2510H-00-00 BOOT SET (DOUBLE OFF SET JOINT)BOOT SET (DOUBLE OFF SET JOINT)
-
335GT-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
344WV-2511G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
354WV-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
3693450-22119-00 CIRCLIPCIRCLIP
-
375GT-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
3893306-00615-00 ......BEARING......BEARING
-
3993102-38417-00 ...OIL SEAL...OIL SEAL
-
4090560-30325-00 ......SPACER......SPACER
-
415GT-25111-00-00 HUB, FRONTHUB, FRONT
-
4290114-10011-00 ...BOLT, SERRATION...BOLT, SERRATION
-
4393210-27666-00 O-RINGO-RING
-
4490201-162L6-00 WASHER, PLATEWASHER, PLATE
-
4590171-16048-00 NUT, CASTLENUT, CASTLE
-
4691401-30030-00 PIN, COTTERPIN, COTTER
