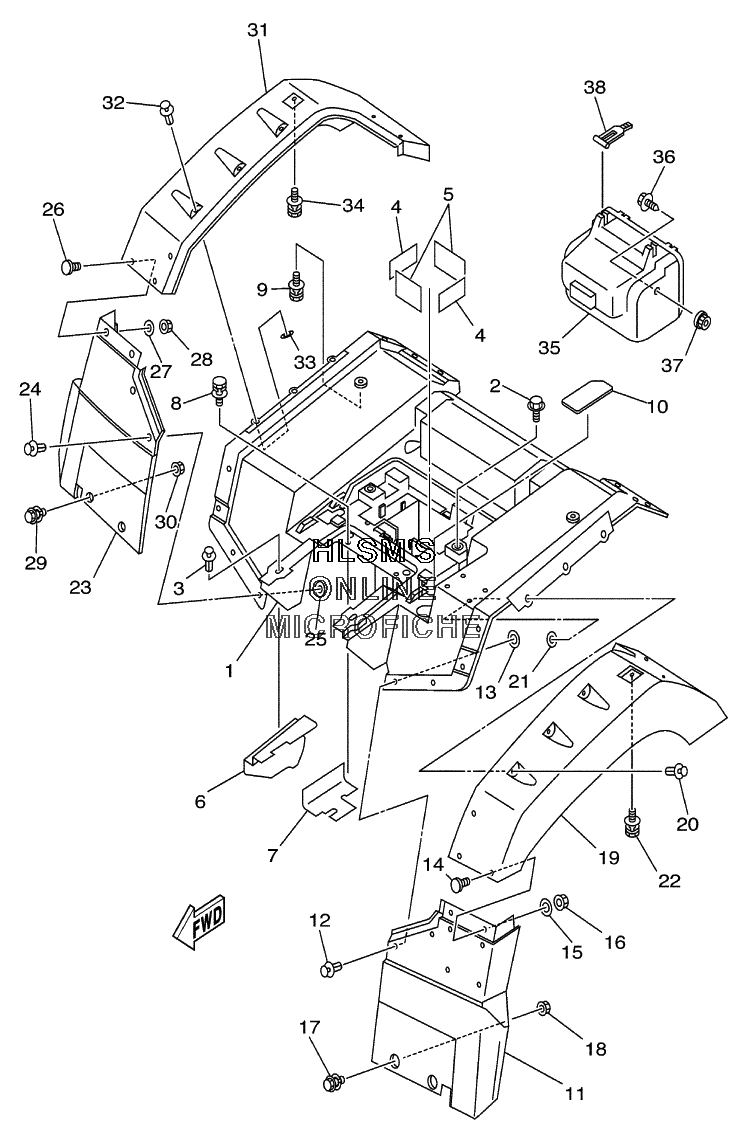

FENDER - REAR для Yamaha GRIZZLY HUNTER EDITION YFM600FWAHN (5GTK) - 2001 года выпуска
-
№АртикулНазвание
-
14WV-W2161-01-00 REAR FENDER COMP (OTR) (ROMANTIQUE ROUGE) (GRIZZLY) (5GTE)REAR FENDER COMP (OTR) (ROMANTIQUE ROUGE) (GRIZZLY) (5GTE)
-
14WV-W2161-11-00 REAR FENDER COMP (OKO) (PASTEL DEEP GREEN) (GRIZZLY) (5GTE)REAR FENDER COMP (OKO) (PASTEL DEEP GREEN) (GRIZZLY) (5GTE)
-
14WV-W2161-21-00 REAR FENDER COMP (598) (DARK GRAYISH YELLOW SOLID) (GRIZZLY) (5GTE)REAR FENDER COMP (598) (DARK GRAYISH YELLOW SOLID) (GRIZZLY) (5GTE)
-
14WV-W2161-A0-00 REAR FENDER COMP (OKO) (REAL TREE GREEN) (HUNTER) (5GTK)REAR FENDER COMP (OKO) (REAL TREE GREEN) (HUNTER) (5GTK)
-
290109-065G4-00 BOLTBOLT
-
390269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
426H-24145-00-00 DAMPERDAMPER
-
550W-82121-00-00 DAMPERDAMPER
-
64WV-21639-00-00 DAMPERDAMPER
-
74WV-21649-00-00 DAMPERDAMPER
-
890119-06056-00 BOLT, HEXAGONBOLT, HEXAGON
-
990119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
105GT-21669-00-00 SEAL (OTR) (ROMANTIQUE ROUGE) (GRIZZLY) (5GTE)SEAL (OTR) (ROMANTIQUE ROUGE) (GRIZZLY) (5GTE)
-
105GT-21669-10-00 SEAL (OKO) (PASTEL DEEP GREEN) (GRIZZLY) (5GTE)SEAL (OKO) (PASTEL DEEP GREEN) (GRIZZLY) (5GTE)
-
105GT-21669-20-00 SEAL (598) (DARK GRAYISH YELLOW SOLID) (GRIZZLY) (5GTE)SEAL (598) (DARK GRAYISH YELLOW SOLID) (GRIZZLY) (5GTE)
-
105GT-21669-10-00 SEAL (OKO) (REAL TREE GREEN) (HUNTER) (5GTK)SEAL (OKO) (REAL TREE GREEN) (HUNTER) (5GTK)
-
115GT-W2168-00-00 FLAP ASSYFLAP ASSY
-
1290269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
1390201-076J4-00 WASHER, PLATEWASHER, PLATE
-
1490154-05052-00 SCREW, BINDINGSCREW, BINDING
-
1590201-05029-00 WASHER, PLATEWASHER, PLATE
-
1695707-05300-00 NUT, FLANGENUT, FLANGE
-
1790119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1895707-06500-00 NUT, FLANGENUT, FLANGE
-
194WV-2162H-00-00 FLAPFLAP
-
2090269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
2190201-076J4-00 WASHER, PLATEWASHER, PLATE
-
2290119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
234WV-21691-00-00 FLAPFLAP
-
2490269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
2590201-076J4-00 WASHER, PLATEWASHER, PLATE
-
2690154-05052-00 SCREW, BINDINGSCREW, BINDING
-
2790201-05029-00 WASHER, PLATEWASHER, PLATE
-
2895707-05300-00 NUT, FLANGENUT, FLANGE
-
2990119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3095707-06500-00 NUT, FLANGENUT, FLANGE
-
314WV-2162J-00-00 FLAPFLAP
-
3290269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
3390201-076J4-00 WASHER, PLATEWASHER, PLATE
-
3490119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
355GT-2160A-00-00 BOX COMPBOX COMP
-
3690119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
3859V-21646-00-00 BANDBAND
