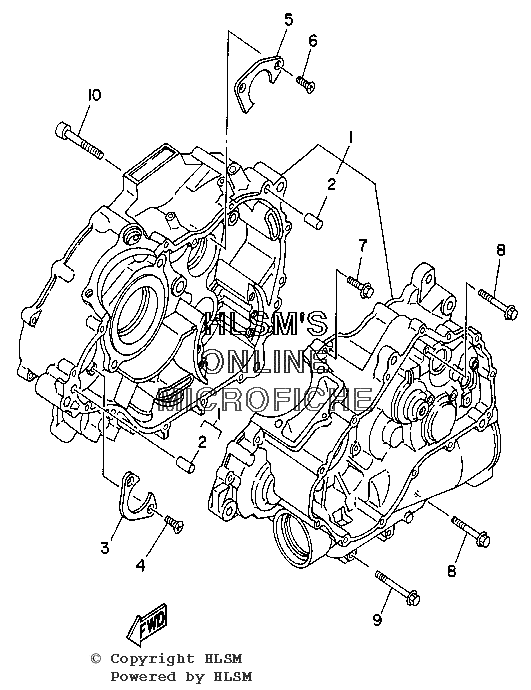

CRANKCASE для Yamaha WOLVERINE YFM35FXN (4KBM) - 2001 года выпуска
-
№АртикулНазвание
-
14KB-15150-04-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
31UY-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
498707-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
54KB-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
698707-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
795027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
895027-06050-00 BOLT, FLANGEBOLT, FLANGE
-
995027-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1090110-08234-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
