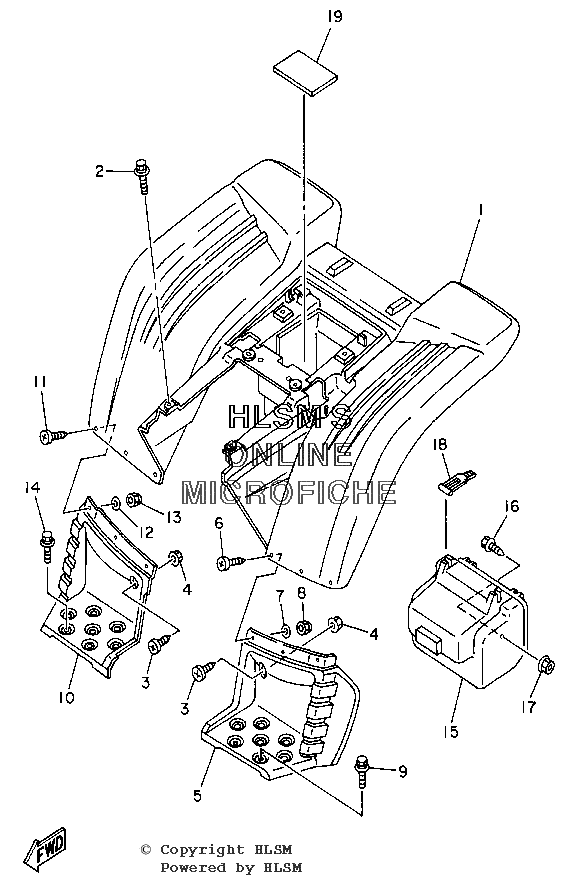

FENDER - REAR для Yamaha WOLVERINE YFM35FXN (4KBM) - 2001 года выпуска
-
№АртикулНазвание
-
14KB-W2161-41-00 REAR FENDER COMP (PASTEL DEEP GREEN)REAR FENDER COMP (PASTEL DEEP GREEN)
-
14KB-W2161-51-00 REAR FENDER COMP (DEEP PURPLISH BLUE)REAR FENDER COMP (DEEP PURPLISH BLUE)
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390149-06306-00 SCREWSCREW
-
495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
54KB-21621-00-00 FLAP (YAMAHA BLACK)FLAP (YAMAHA BLACK)
-
690149-06306-00 SCREWSCREW
-
792907-06200-00 WASHERWASHER
-
895607-06100-00 NUT, UNUT, U
-
990119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
104KB-21691-00-00 FLAP (YAMAHA BLACK)FLAP (YAMAHA BLACK)
-
1190149-06306-00 SCREWSCREW
-
1292907-06200-00 WASHERWASHER
-
1395607-06100-00 NUT, UNUT, U
-
1490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
154KB-2160A-00-00 BOX COMPBOX COMP
-
1690119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
1859V-21646-00-00 BANDBAND
-
194BD-21639-00-00 DAMPER 2DAMPER 2
