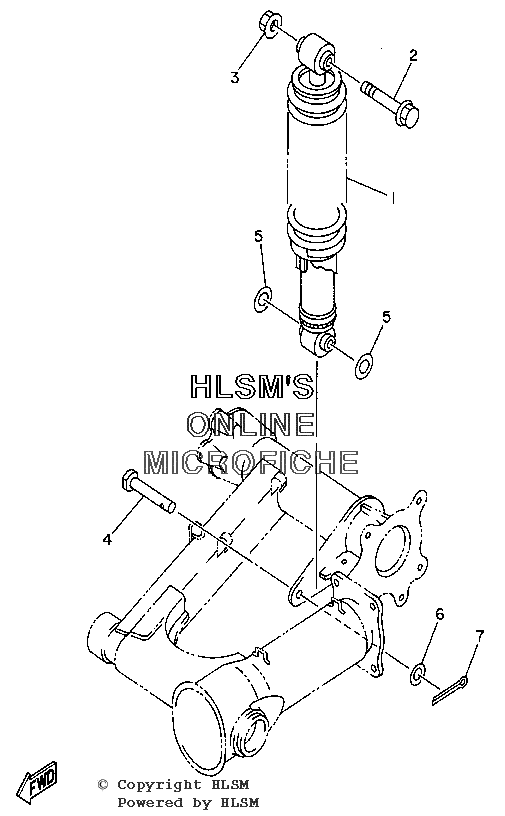

SUSPENSION - REAR SHOCK ABSORBER для Yamaha WOLVERINE YFM35FXN (4KBM) - 2001 года выпуска
-
№АртикулНазвание
-
14KB-22210-00-35 SHOCK ABSORBER ASSY, REAR (PASTEL DEEP GREEN)SHOCK ABSORBER ASSY, REAR (PASTEL DEEP GREEN)
-
14KB-22210-00-36 SHOCK ABSORBER ASSY, REAR (DEEP PURPLISH BLUE)SHOCK ABSORBER ASSY, REAR (DEEP PURPLISH BLUE)
-
290105-12425-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490240-12092-00 PIN, CLEVISPIN, CLEVIS
-
51W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
690201-127J6-00 WASHER, PLATEWASHER, PLATE
-
791401-30025-00 PIN, COTTERPIN, COTTER
