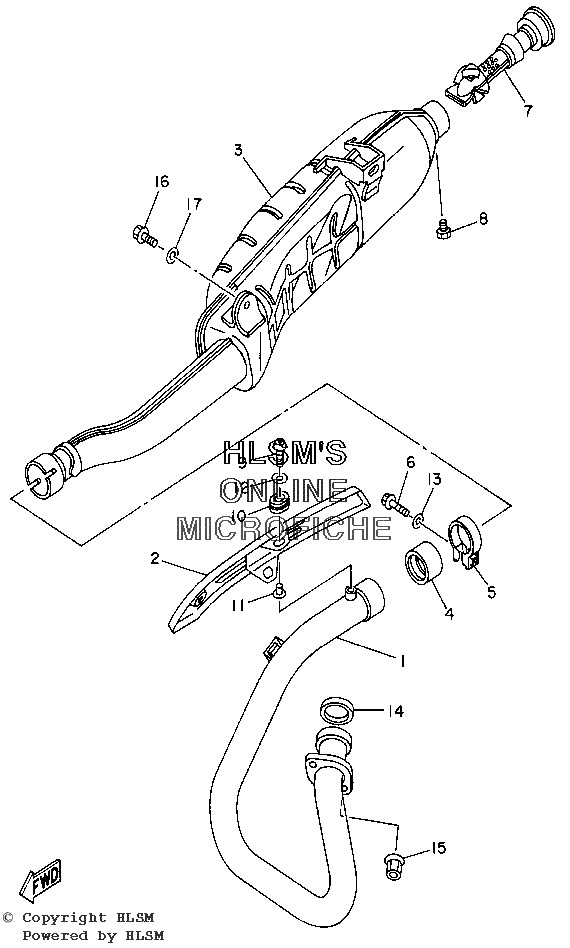

EXHAUST для Yamaha WOLVERINE YFM35FXN (4KBM) - 2001 года выпуска
-
№АртикулНазвание
-
14KB-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
24KB-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
34KB-14711-02-00 MUFFLER 1MUFFLER 1
-
43YF-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
51UY-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
695817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
721V-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
897007-06008-00 BOLTBOLT
-
992017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090480-01590-00 GROMMETGROMMET
-
1190387-062L2-00 COLLARCOLLAR
-
1290201-06059-00 WASHER, PLATEWASHER, PLATE
-
1390201-086J0-00 WASHER, PLATEWASHER, PLATE
-
143GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1590179-06668-00 NUTNUT
-
1695817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-08326-00 WASHER, PLATEWASHER, PLATE
