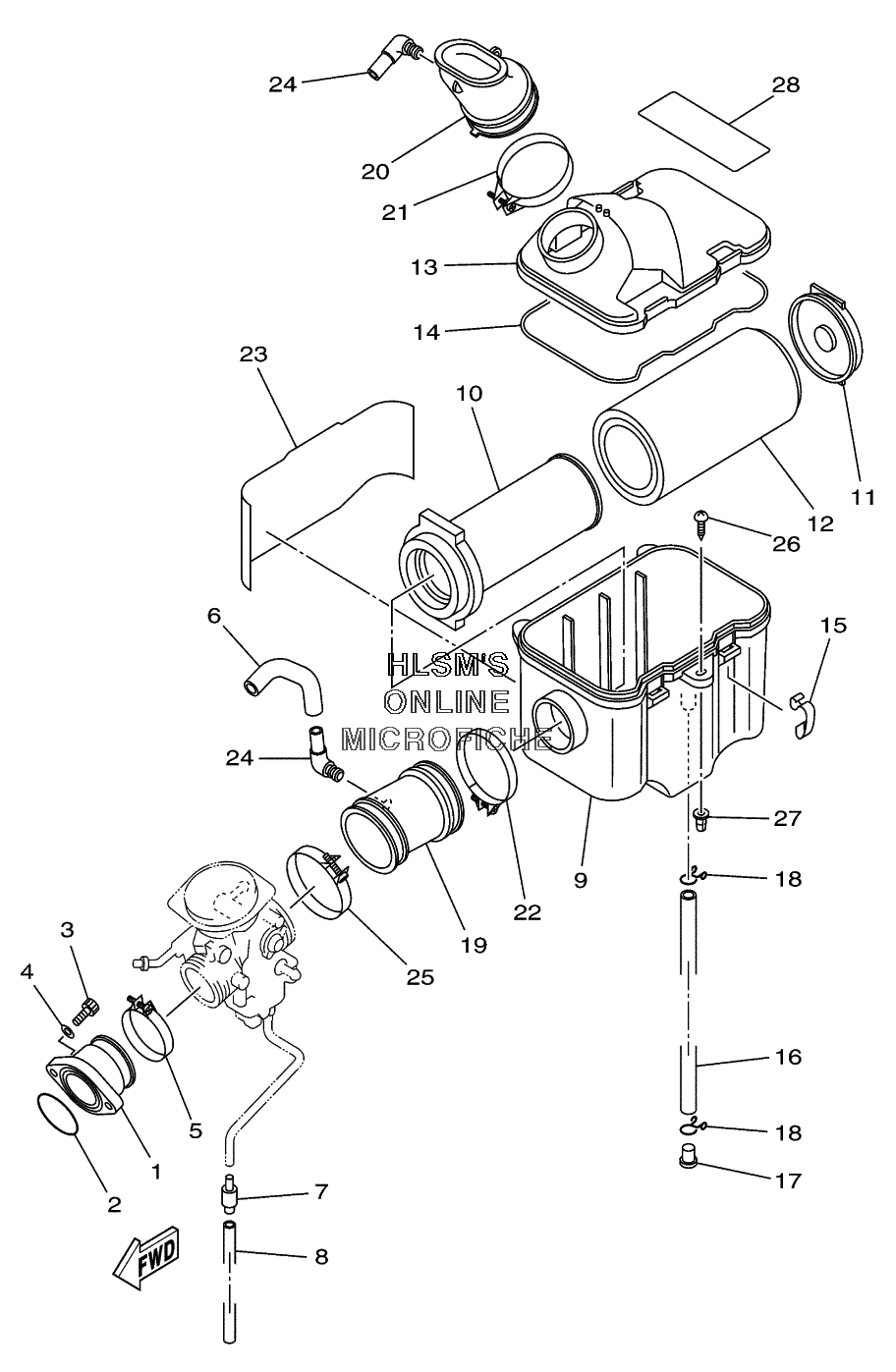

AIR CLEANER W/ INTAKE для Yamaha KODIAK 4X4 YFM400FAP (5GHK) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391317-08025-00 BOLTBOLT
-
490201-08085-00 WASHER, PLATEWASHER, PLATE
-
590450-47001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65GH-14349-00-00 PIPEPIPE
-
724W-14193-00-00 PIPEPIPE
-
891A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
95GH-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
105GH-14458-01-00 GUIDEGUIDE
-
111UY-14468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
125GH-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
135GH-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
145GH-14462-00-00 SEALSEAL
-
155GH-14436-00-00 HOOKHOOK
-
1691A20-12026-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1790338-12081-00 PLUGPLUG
-
1890467-15012-00 CLIPCLIP
-
195GH-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
205GH-14437-00-00 DUCTDUCT
-
2190450-60085-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2290460-58015-00 CLAMP, HOSECLAMP, HOSE
-
235GH-1442F-00-00 PROTECTORPROTECTOR
-
2431A-14419-00-00 PIPEPIPE
-
2590460-56105-00 CLAMP, HOSECLAMP, HOSE
-
2697707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
2790338-08226-00 PLUGPLUG
-
285GH-2179T-30-00 PLATE, EPA 3 (CALIFORNIA)PLATE, EPA 3 (CALIFORNIA)
