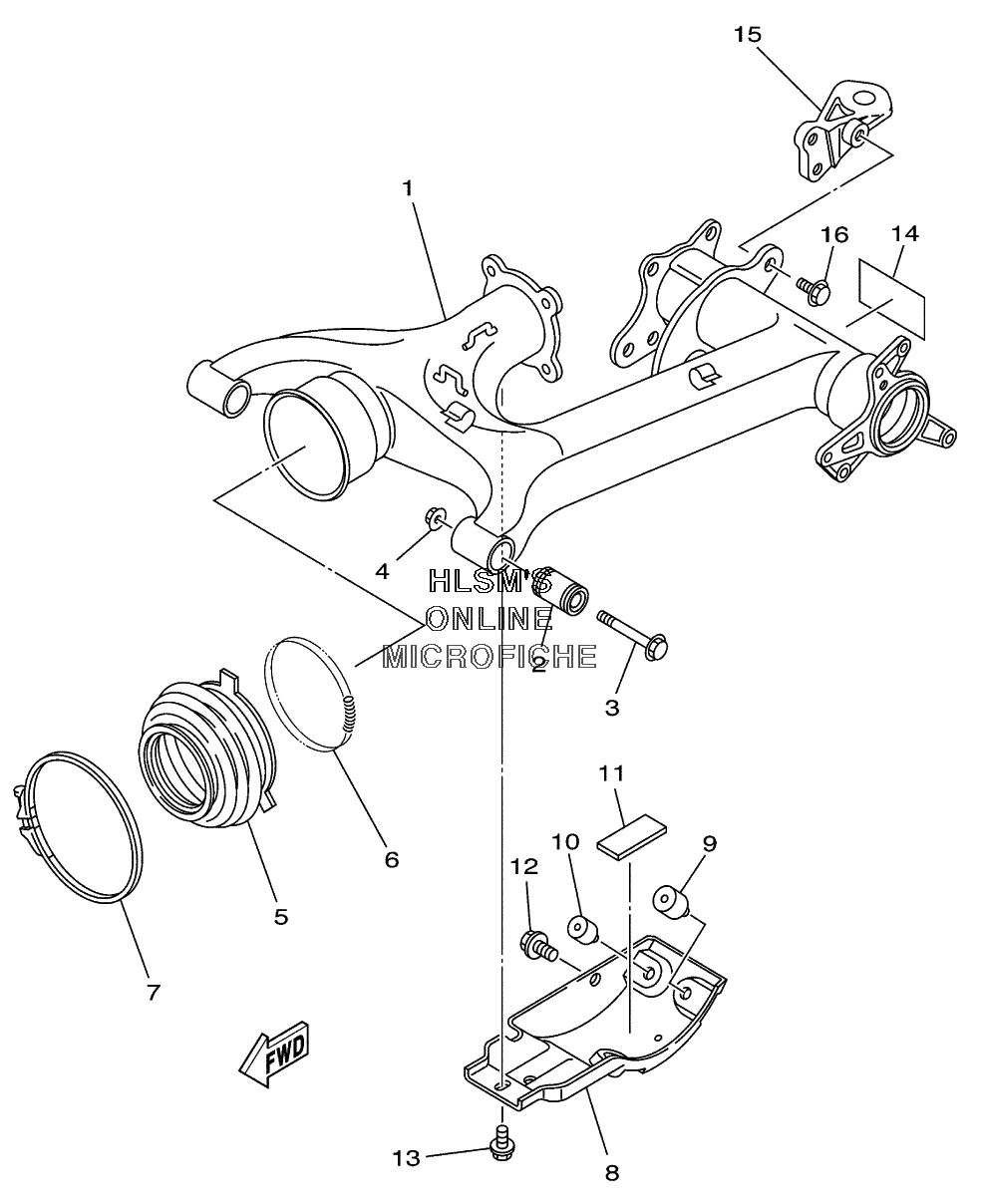

SUSPENSION - REAR ARM для Yamaha KODIAK 4X4 YFM400FAP (5GHK) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-22110-10-00 REAR ARM COMPREAR ARM COMP
-
25GH-22123-00-00 BUSH 1BUSH 1
-
390105-12660-00 BOLT, FLANGEBOLT, FLANGE
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
55GH-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
690506-07135-00 SPRING, TENSIONSPRING, TENSION
-
790460-85277-00 CLAMP, HOSECLAMP, HOSE
-
84BD-2219X-02-00 COVERCOVER
-
91A0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
10109-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
111UJ-21638-00-00 DAMPER 1DAMPER 1
-
1295827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1395827-10016-00 BOLT, FLANGEBOLT, FLANGE
-
145GH-2151K-00-00 LABEL 7LABEL 7
-
155GH-28488-00-00 HOOKHOOK
-
1695827-10020-00 BOLT, FLANGEBOLT, FLANGE
