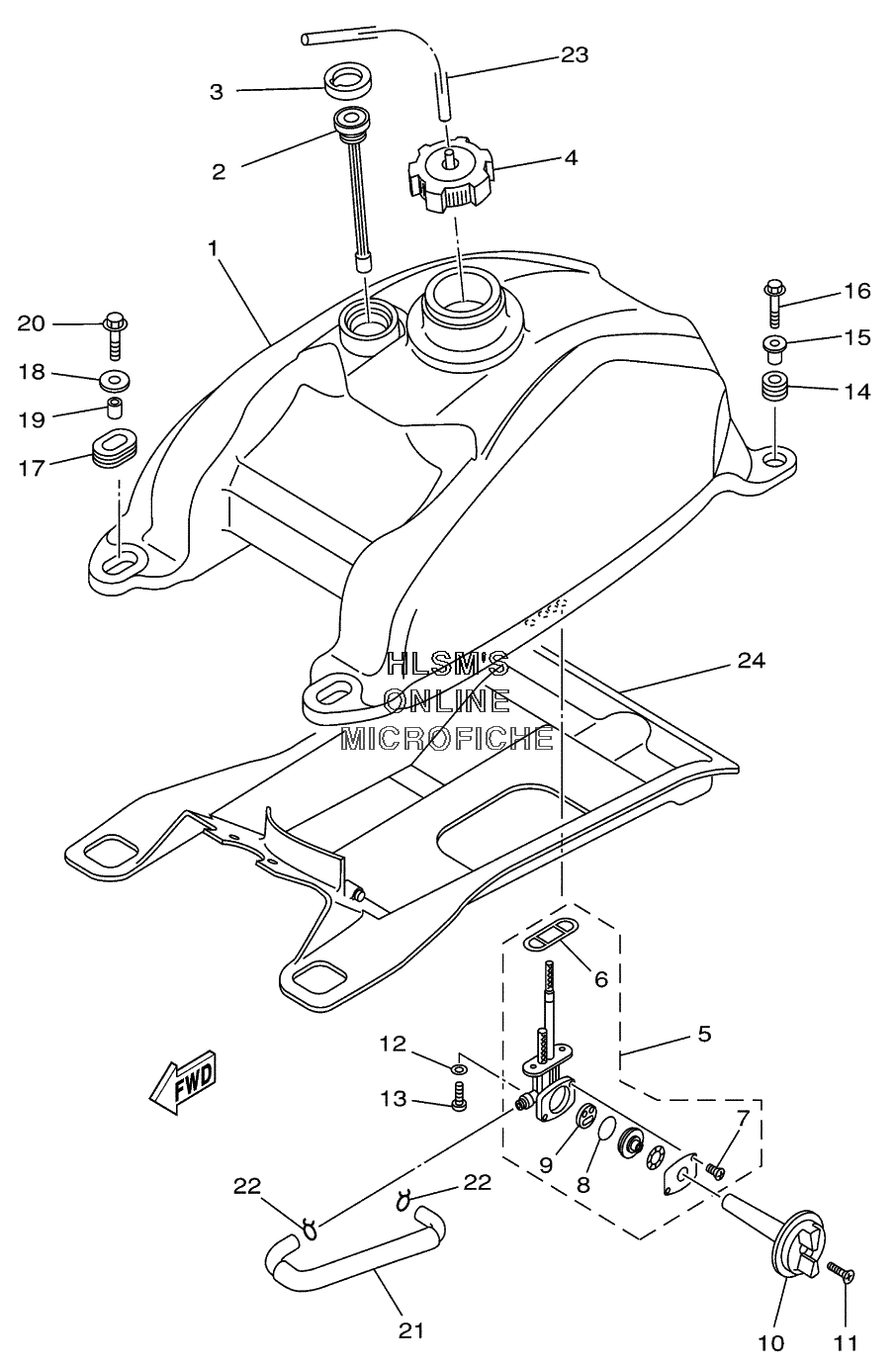

FUEL TANK для Yamaha KODIAK 4X4 YFM400FAP (5GHK) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-24110-00-00 FUEL TANK COMPFUEL TANK COMP
-
25GH-24260-00-00 FUEL METER ASSYFUEL METER ASSY
-
34SH-24261-00-00 HOUSING, FUEL METERHOUSING, FUEL METER
-
45KM-24610-00-00 CAP ASSYCAP ASSY
-
55GH-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
63AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
798507-03014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
84X8-24512-00-00 ...O-RING...O-RING
-
93AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
105GH-24524-00-00 LEVER, COCKLEVER, COCK
-
1198707-04018-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1290202-05193-00 WASHER, PLATEWASHER, PLATE
-
1390149-06011-00 SCREWSCREW
-
1490480-18290-00 GROMMETGROMMET
-
1590387-066J1-00 COLLARCOLLAR
-
1695807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1790480-01400-00 GROMMETGROMMET
-
1890201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1990387-07598-00 COLLARCOLLAR
-
2090119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
215GH-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2290467-10008-00 CLIPCLIP
-
2390445-084J1-00 HOSE (L420)HOSE (L420)
-
245GH-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
