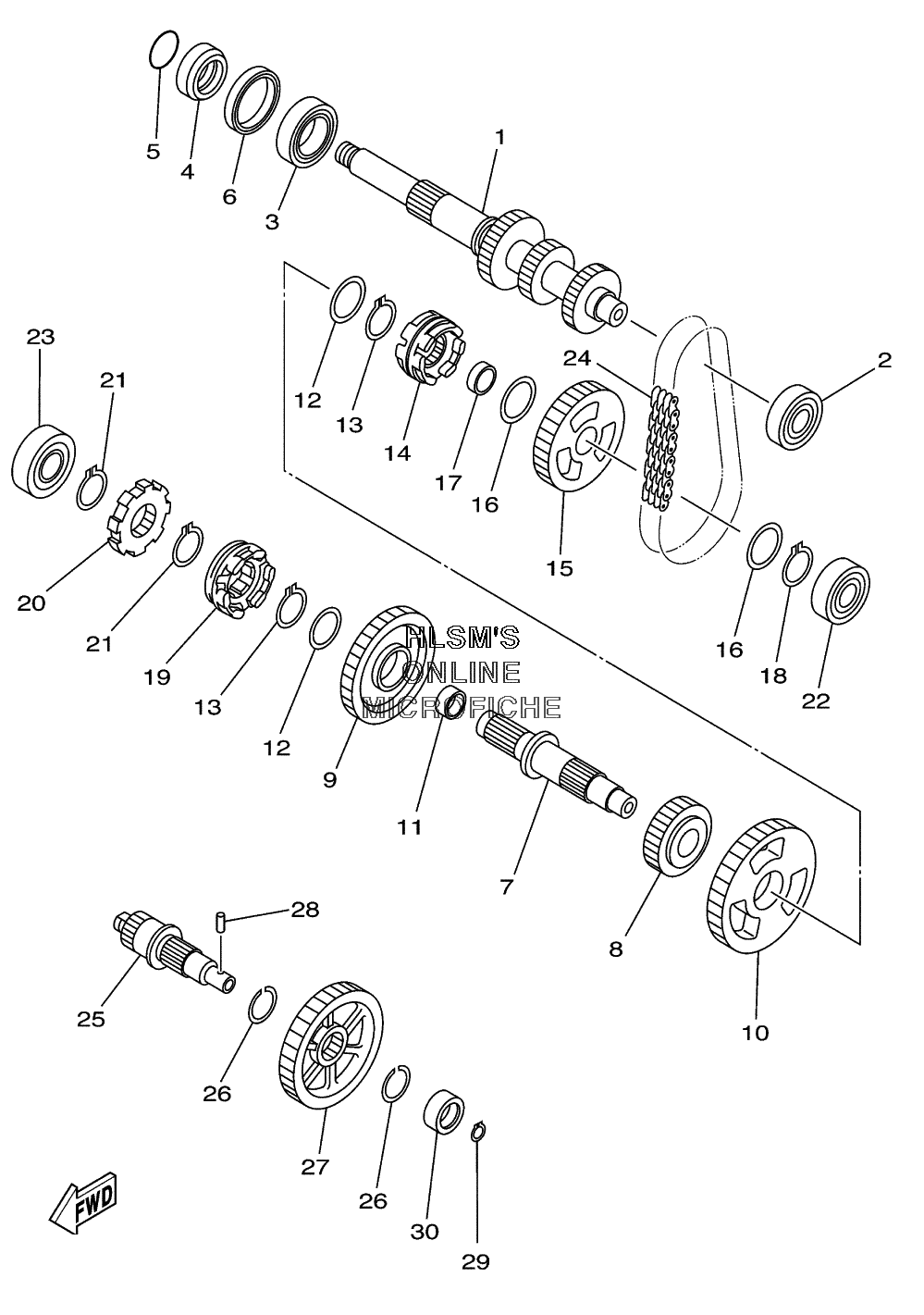

TRANSMISSION для Yamaha KODIAK 4X4 YFM400FAP (5GHK) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-00415-00 BEARING (B6004)BEARING (B6004)
-
393306-20601-00 BEARING (B6206C3)BEARING (B6206C3)
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
75GH-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
85GH-17582-00-00 GEAR, MIDDLE DRIVE (24TEETH)GEAR, MIDDLE DRIVE (24TEETH)
-
95GH-17223-00-00 GEAR, HIGH WHEEL (38TEETH)GEAR, HIGH WHEEL (38TEETH)
-
105GH-17233-10-00 GEAR, LOW WHEELGEAR, LOW WHEEL
-
1193310-32590-00 BEARINGBEARING
-
1290201-250R9-00 WASHER, PLATEWASHER, PLATE
-
1393440-25084-00 CIRCLIPCIRCLIP
-
145GT-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
155GH-17453-10-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1690201-20278-00 WASHER, PLATEWASHER, PLATE
-
1793310-420F2-00 BEARINGBEARING
-
1893410-20038-00 CIRCLIPCIRCLIP
-
195GH-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
205GH-17473-00-00 STOPPERSTOPPER
-
2193440-25084-00 CIRCLIPCIRCLIP
-
2293306-30201-00 BEARING (B6302)BEARING (B6302)
-
2393306-20464-00 BEARINGBEARING
-
2494591-54038-00 CHAINCHAIN
-
255GT-17523-00-00 SHAFTSHAFT
-
2693440-25084-00 CIRCLIPCIRCLIP
-
275GH-17583-00-00 GEAR, MIDDLE DRIVEN (39TEETH)GEAR, MIDDLE DRIVEN (39TEETH)
-
2893603-14240-00 PIN, DOWELPIN, DOWEL
-
2993440-14155-00 CIRCLIPCIRCLIP
-
3093311-42077-00 BEARINGBEARING
