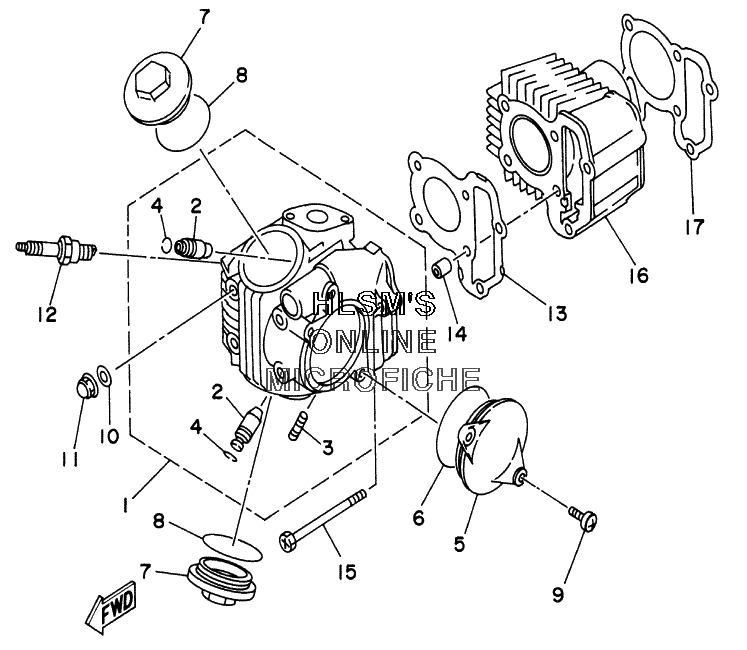

CYLINDER для Yamaha RAPTOR 80 YFM80WP (5TH1) - 2002 года выпуска
-
№АртикулНазвание
-
135T-11110-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
222F-11134-10-00 ......GUIDE, EXHAUST VALVE......GUIDE, EXHAUST VALVE
-
322F-14651-00-00 ......BOLT......BOLT
-
493440-10109-00 ......CIRCLIP......CIRCLIP
-
522F-11185-01-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
693210-63556-00 O-RINGO-RING
-
722F-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
893210-44704-00 O-RINGO-RING
-
998507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1090201-066F0-00 WASHER, PLATEWASHER, PLATE
-
1190176-06065-00 NUT, CROWNNUT, CROWN
-
12NGK-C7HSA-00-00 PLUG, SPARK (NGK CR7HS)PLUG, SPARK (NGK CR7HS)
-
1355X-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1595027-06085-00 BOLT, FLANGEBOLT, FLANGE
-
1622K-11311-02-00 CYLINDER 1CYLINDER 1
-
1722F-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
