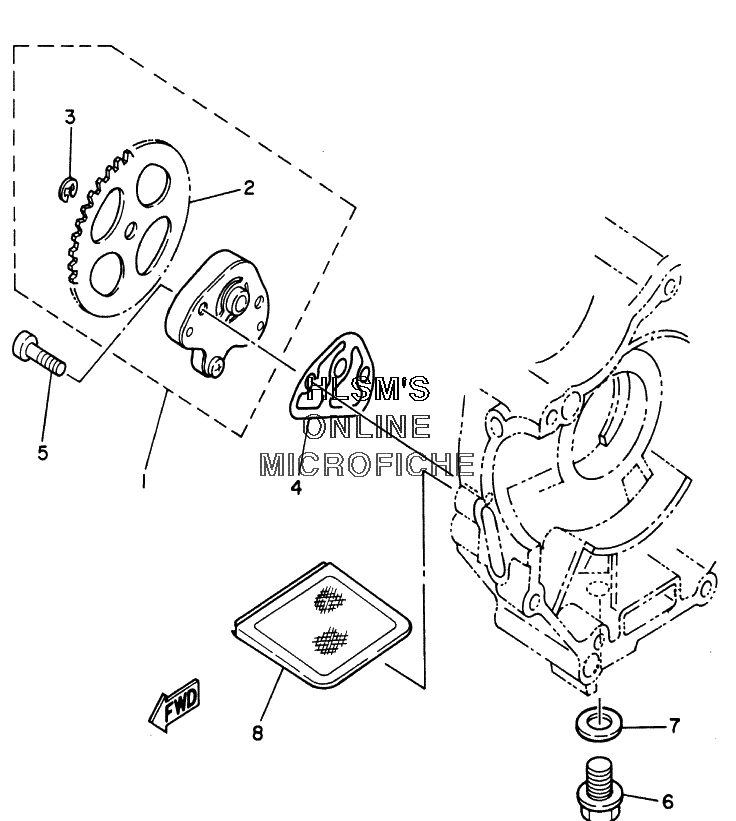

OIL PUMP для Yamaha RAPTOR 80 YFM80WP (5TH1) - 2002 года выпуска
-
№АртикулНазвание
-
12FJ-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
246J-13325-00-00 ......GEAR, PUMP DRIVEN......GEAR, PUMP DRIVEN
-
399001-05600-00 ......CIRCLIP......CIRCLIP
-
422F-13329-01-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
590155-06007-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
690340-12097-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
7812-11198-00-00 GASKETGASKET
-
822F-13411-01-00 STRAINER, OILSTRAINER, OIL
