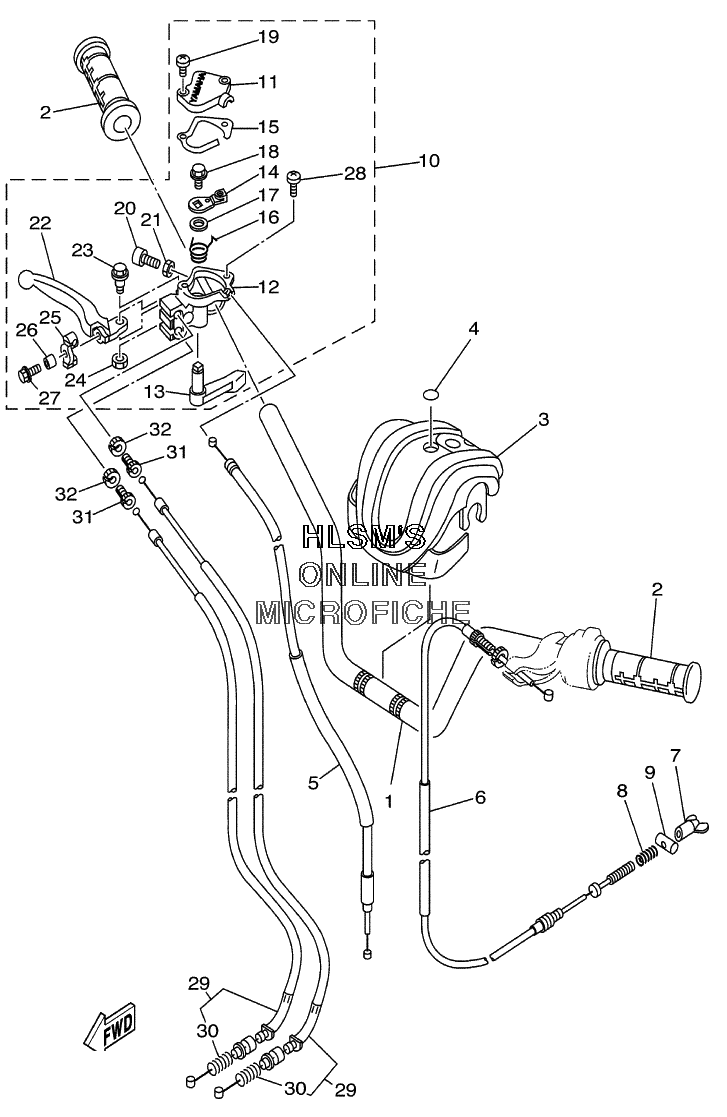

HANDLEBAR W/ THROTTLE - CABLE для Yamaha RAPTOR 80 YFM80WP (5TH1) - 2002 года выпуска
-
№АртикулНазвание
-
15TH-26111-00-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
35TH-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
53GB-26311-02-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
63GB-26341-01-00 CABLE, BRAKECABLE, BRAKE
-
720E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
890501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990249-12008-00 PINPIN
-
105TH-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
113GB-2628F-00-00 ......CAP, GEAR......CAP, GEAR
-
123GB-2625E-01-00 ......BODY, THROTTLE......BODY, THROTTLE
-
133GB-2625G-00-00 ......LEVER, THROTTLE......LEVER, THROTTLE
-
143GB-2625H-00-00 ......ARM, THROTTLE......ARM, THROTTLE
-
153GB-2628G-01-00 ......GASKET......GASKET
-
1690508-10775-00 ......SPRING, TORSION......SPRING, TORSION
-
1790201-145M4-00 ......WASHER, PLATE......WASHER, PLATE
-
1895807-08012-00 ......BOLT, FLANGE......BOLT, FLANGE
-
1998507-04016-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
2091317-05025-00 ......BOLT......BOLT
-
2195307-05700-00 ......NUT......NUT
-
225TH-83922-00-00 ......LEVER 2......LEVER 2
-
2390109-061F3-00 ......BOLT......BOLT
-
2495607-06100-00 ......NUT, U......NUT, U
-
253GB-26347-00-00 ......JOINT, CABLE......JOINT, CABLE
-
2690387-066V8-00 ......COLLAR......COLLAR
-
2795807-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
2898507-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
293GB-26361-03-00 CABLE, BRAKECABLE, BRAKE
-
3090501-08511-00 ......SPRING, COMPRESSION......SPRING, COMPRESSION
-
3190123-08106-00 BOLTBOLT
-
3290179-08148-00 ...NUT...NUT
